Truoba Mini 121

  285 sq/ft     1 Bed     1 Bath

House plan design
Customize This House Plan

House Construction Drawings

$

How Much Will It Cost To Build?

Get Cost To Build Report

How Much Will It Cost To Build?

Get Cost To Build Report

Truoba Mini 121

  285 sq/ft     1 Bed     1 Bath

House plan design
Customize This House Plan

House Construction Drawings

$

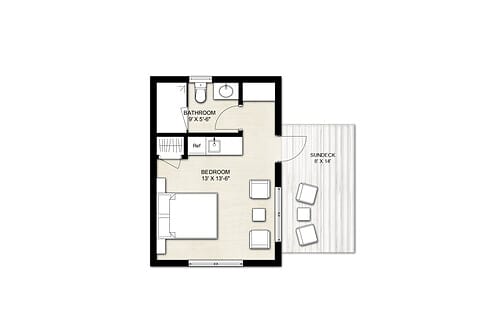

Truoba Cabin house floor plans

Floor Plan

285 sq/ft

House Area

14′-4″ X 20′-9″

Dimensions
Customize This Plan

Check how floor plan sits on your plot for FREE

  • Open floor plan
  • Living area can be transformed as home office
  • Bedroom linked to the porch
  • Master sitting area
  • Storage closet
  • Vacation home
  • Front deck
  • Home office

Area

House area: 285 sq. ft.



Dimension

Width: 14′-4″

Depth: 20′-9″

Height: 12′



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Wood siding

Possible different wall finishes: Vinyl, brick veneer, stone, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl. Additionally, choose basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Roof pitch: 2/12 (10o)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)

Snow load: calculated for 10 PSF, 25 PSF and 35 PSF



House Interior

Ceiling height: from 8′-6″ to 10′-8″

Cozy Yet Spacious

Great for a Smaller Lot

The small cabin house plan was designed to serve as an Accessory Dwelling Unit, a guest house, or a home office, that can be built on the property of your main residence. The house character is expressed through a seamless connection between the interior and the exterior spaces, and open glazing to the outside.

Versatile Floor Plan

In the bedroom, there is a small kitchen and a seating area, common in such tiny house plans. The bedroom area opens up to the deck that you can make as a covered porch.

House plan design

Customize This House

If you like this house, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

View Customized House Plans Examples Customization Pricing Guide

Describe Your Customizations

    Sign me up to Newsletter

    Blueprints That You Get

    Construction Notes

    Foundation Plan

    Slab or Crawl | On request - Basement, Pier & Beam.
    House foundation design showing foundation layout with structural elements.

    Plumbing Plan

    Shows the layout of plumbing fixtures with specifications.

    Floor Plan

    Indicates house layout with dimensioned walls, doors, windows, etc.

    Roof Construction Plan

    Shows roof layout and structural specifications.

    Roof Plan

    Dimensioned roof layout indicating slopes, roof areas and decorative elements.

    Sections

    Cut through the building showing detailed floor, wall, and roof construction elements with specifications

    Plot Plan (+$100)

    Elevations

    Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

    Construction Details

    Detailed house cut-away thought floor, exterior wall and roof with outlined specifications. Door and window details too.

    Electrical Plan

    Home plan layout indicating locations of electrical elements.

    HVAC Plan

    Indicates location and specifications for heating, ventilation and air conditioning.

    Furniture Plan

    House plan layout indicating room sizes and suggested furniture layout.

    Door and Window Schedule

    List or all doors and windows with indicated specifications for manufacturer.

    General Specifications

    Plumbing, electrical and mechanical specifications

    Plot Plan

    Some counties require to have a plot plan in order to obtain a building permit. The plot plan shows where the house will be located on your property, so the builder would know where exactly to pour foundations. In order for us to produce a plot plan, you would need to send us your plot topography drawing or write us your plot boundary dimensions with stated setbacks. The plot plan would also show plot size, existing and new structures, set back lines, sewage disposal systems, utilities, power lines, driveway, paving, existing trees, etc.

    Electrical Plan

    Each customer knows better where they would like to locate lighting, switches or outlets. After you purchase the house construction drawings, if you would like to make electrical layout changes, send us your comments and we will update electrical plan for Free.

    Structural Requirements

    The construction drawing set must be reviewed by a local structural engineer, as of the different structural requirements in each county. Each location has different soil conditions as well as different load requirements for snow, wind, seismic, etc. For this reason structural engineer would need to specify supporting structure including beams, girders, headers, rafters/trusses, columns, etc. Also, most of the building departments require to get a local structural engineer’s stamps to obtain a building permit. After the engineer’s review, if there is a need to update the construction drawing set according to engineer's structural specifications, we will update the drawings for Free and will issue an updated drawing set.

    House Plans

    Free Study Set Brochure

    Study Brochure includes floor plans, 3D images, elevations, Floor-Wall-Roof construction details, specifications, sustainable construction techniques, etc.

      Sign me up to Newsletter

      See How Your Preferred House Plan Sits On Your Lot For Free

      Send us your plot plan drawing, and we'll show you how your desired house will fit on your lot. We will advise on the best location for the house, how to gain more privacy, and how to take advantage of the best lot views.

      Check how floor plan sits on your plot
