Truoba Mini 220

  570 sq/ft     1 Bed     1 Bath

House plan design
Customize This House Plan

House Construction Drawings

Clear
$

Truoba Mini 220

  570 sq/ft     1 Bed     1 Bath

House plan design
Customize This House Plan

House Construction Drawings

Clear
$

Rate this plan

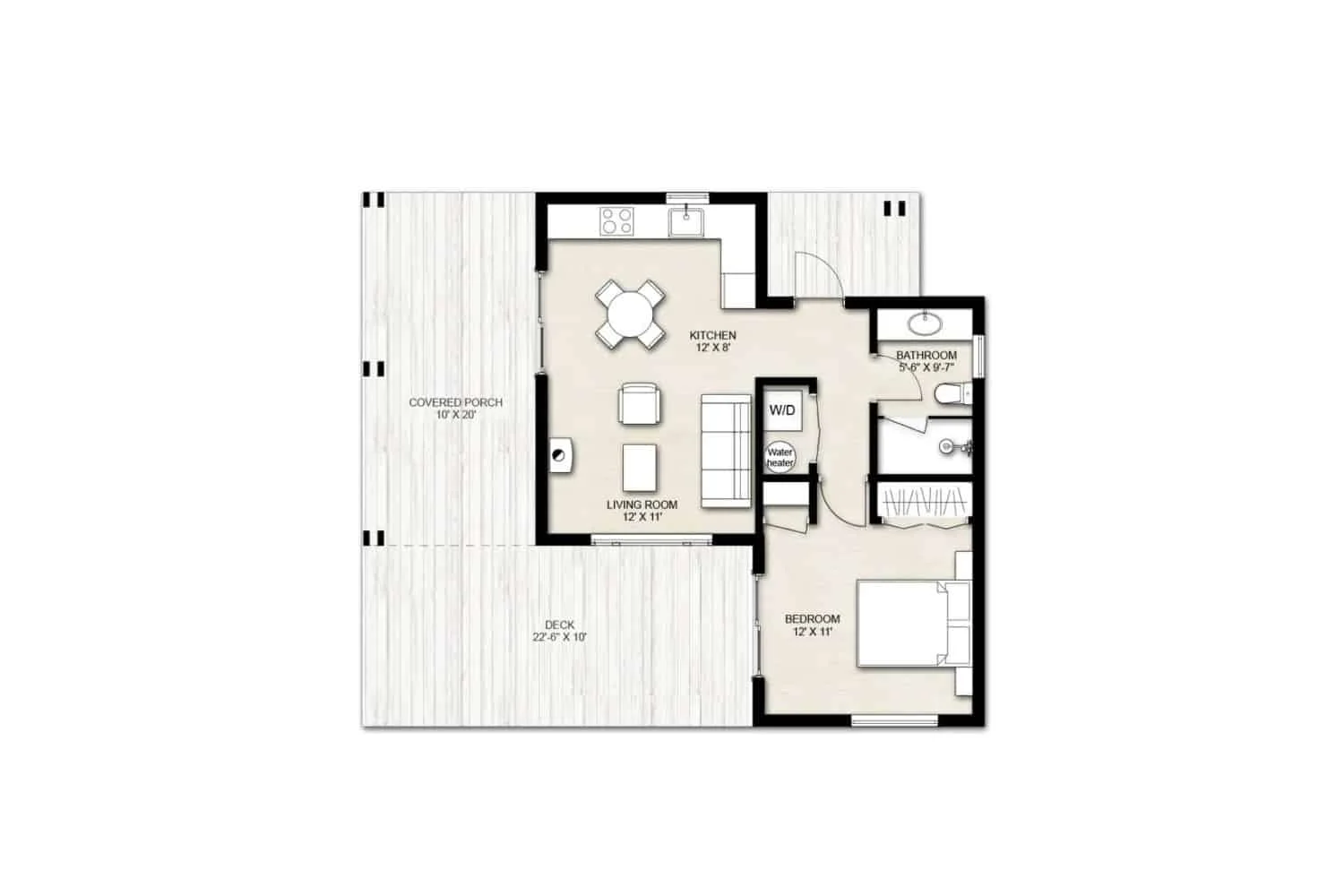

Floor Plan

570 sq/ft

House Area

35′-9″ X 30′-9″

Dimensions
Customize This Plan

Check how floor plan sits on your plot for FREE

  • Open floor plan
  • Living area linked to the porch
  • Fireplace
  • Master bedroom linked to the porch
  • Master closet
  • Storage space
  • Vacation home
  • Covered front porch
  • Covered side porch

Area

House area: 570 sq. ft.



Dimension

Width: 35′-9″

Depth: 30′-9″

Height: 15′-8″



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Board and batten siding

Possible different wall finishes: Metal, vinyl, wood, brick veneer, stone, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Primary pitch: 3.5/12 (16o)

Secondary pitch: 2/12 (10o)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)

Snow load: calculated for 10 PSF, 25 PSF and 35 PSF



House Interior

Angled living room ceiling height: from 11′ to 14′

Ceiling height: 9′-6″

HVAC Furnace can be located in the attic

Cozy Yet Spacious

Great for a Smaller Lot

This small house plan was designed to serve as an Accessory Dwelling Unit or a guest house, that can be built on the property of your main residence. The house character is expressed through a seamless connection between the interior and the exterior spaces.

Versatile Floor Plan

The kitchen and the great room were designed as one continuous space, common in such tiny house plans. The living area opens up to the covered porch that you can add screens too. The master bedroom is located away from the main living area to give more privacy and peace. The bathroom is located right by the bedroom. The utility room can accommodate a stackable washer and dryer, a closet for storage and the water heater on the side.

House plan design

Customize This House

If you like this plan, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

View Customized House Plans Examples

Describe Your Customizations

    Customization Pricing Guide

    During house customization process there is no limit for revisions. Customization process continues until you are absolutely sure the house plan is for you and there is nothing else you would like to change.



    MINOR CHANGES

    Cost $100 - $500

    Examples:

    - Reverse house plan

    - Minor layout redesign for kitchen, living room, bedrooms, bathrooms, etc.

    - Change exterior design with different siding layout, materials and colors.

    - Extending 1-2 rooms and rearranging room layout.

    - Adding or removing 1-2 rooms (depending on complexity and square footage).

    - Custom house structure such as masonry, ICF, etc. or changing 2"x 6" framing to 2"x 4", 2"x 8", etc.

    - Adding garage space for an additional car or changing garage entry location.

    - Changing, adding or removing doors and windows.

    - Changing roof pitch.



    MEDIUM CHANGES

    Cost $500 - $1000

    Examples:

    - Redesigning kitchen, living room, bedrooms, bathrooms, etc. and rearranging room location in the floor plan.

    - Change roof type to gable, hip, flat, lean-to roof, etc.

    - House expansion with additional rooms (depending on complexity and additional square footage).

    - Significant exterior changes with additional building massing design, different siding layout, materials and colors.



    MAJOR CHANGES

    Cost $1000 +

    Examples:

    - Redesigning over 40% of the floor plan.

    - Adding significant square footage.

    - Adding a floor with new room layout design.

    What You Get

    The List of House Construction Drawings

    Plot Plan (+$100)
    Construction Notes
    Foundation Plan

    Slab or Crawl | On request - Basement, Pier & Beam.
    House foundation design showing foundation layout with structural elements.

    Plumbing Plan

    Shows the layout of plumbing fixtures with specifications.

    Floor Plan

    Indicates house layout with dimensioned walls, doors, windows, etc.

    Roof Construction Plan

    Shows roof layout and structural specifications.

    Roof Plan

    Dimensioned roof layout indicating slopes, roof areas and decorative elements.

    Sections

    Cut through the building showing detailed floor, wall, and roof construction elements with specifications

    Elevations

    Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

    Construction Details

    Detailed house cut-away thought floor, exterior wall and roof with outlined specifications. Door and window details too.

    Electrical Plan

    Home plan layout indicating locations of electrical elements.

    HVAC Plan

    Indicates location and specifications for heating, ventilation and air conditioning.

    Furniture Plan

    House plan layout indicating room sizes and suggested furniture layout.

    Door and Window Schedule

    List or all doors and windows with indicated specifications for manufacturer.

    General Specifications

    Plumbing, electrical and mechanical specifications

    More Info
    Plot Plan

    Some counties require to have a plot plan in order to obtain a building permit. The plot plan shows where the house will be located on your property, so the builder would know where exactly to pour foundations. In order for us to produce a plot plan, you would need to send us your plot topography drawing or write us your plot boundary dimensions with stated setbacks. The plot plan would also show plot size, existing and new structures, set back lines, sewage disposal systems, utilities, power lines, driveway, paving, existing trees, etc.

    Electrical Plan

    Each customer knows better where they would like to locate lighting, switches or outlets. After you purchase the house construction drawings, if you would like to make electrical layout changes, send us your comments and we will update electrical plan for Free.

    Structural Requirements

    The construction drawing set must be reviewed by a local structural engineer, as of the different structural requirements in each county. Each location has different soil conditions as well as different load requirements for snow, wind, seismic, etc. For this reason structural engineer would need to specify supporting structure including beams, girders, headers, rafters/trusses, columns, etc. Also, most of the building departments require to get a local structural engineer’s stamps to obtain a building permit. After the engineer’s review, if there is a need to update the construction drawing set with the engineer's notes, we will update the drawings for Free and will issue an updated drawing set.
