Truoba Class 316

2754 sq/ft     3 Bed     2.5 Bath

House plan design
Customize This House Plan

House Construction Drawings

$

How Much Will It Cost To Build?

Get Cost To Build Report

How Much Will It Cost To Build?

Get Cost To Build Report

Truoba Class 316

2754 sq/ft     3 Bed     2.5 Bath

House plan design
Customize This House Plan

House Construction Drawings

$



Rate this plan

3.7/5 - (37 votes)

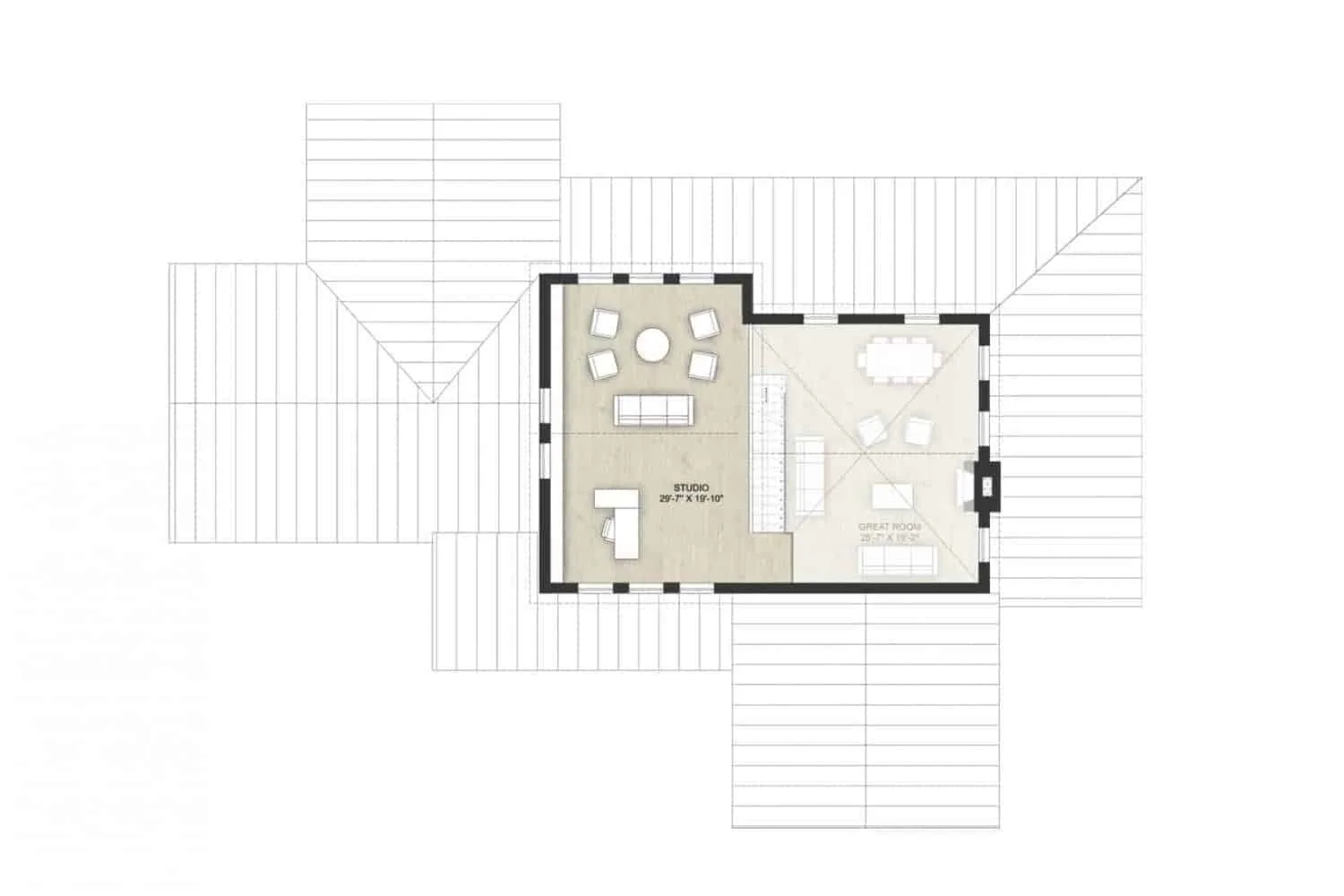

Truoba Class 316 house plan, secon floor house floor plan

Floor Plan

2754 sq/ft

House Area

525 sq/ft

Garage Area

94′-5″ X 69′-8″

Dimensions
Customize This Plan

Check how floor plan sits on your plot for FREE

  • Open floor plan
  • Living area linked to the porch
  • Open space to the second floor
  • Fireplace
  • Master Bedroom separate from other bedrooms
  • Walk-in closet
  • Private terrace
  • Home office – studio
  • Mud room
  • Walk-in pantry
  • Covered front porch
  • Covered rear porch
  • Outside fireplace

Area

House area: 2754 sq. ft.

Garage area: 525 sq. ft.



Dimension

Width: 94′-5″

Depth: 69′-8″

Height: 29′-9″



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Vinyl siding

Possible different wall finishes: Wood siding, brick veneer, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl. Additionally, choose basement foundation

Insulation: 8″ – 10″ (applicable for additional insulation)



Roof

Primary pitch: 5.4/12 (24o)

Secondary pitch: 6.4/12 (28o)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)

Snow load: calculated for 10 PSF, 25 PSF and 35 PSF



House Interior

Ceiling height: from 9′

Main living area ceiling height: Pitch bottom 15′-5″, pitch top 21′

The place to unwind

Modern farmhouse

This design is one of the house plans that are a combination of traditional American farmhouse and minimalistic contemporary style architecture. It reflects the needs of contemporary living by giving you diverse inside spaces, perfect for spending quality time with the family or having friends over. All main ground-floor spaces are connected to the open outside porch, that can be used for relaxing or barbecuing.

Lofty space

The floor plan is divided into a few different zones. The main living area features a double story ceiling that opens up to the second-floor studio and is great for communal activities as well as working in private. The master bedroom features a large en suite bathroom and has a closet situated further away from the main bedroom area to give privacy and insulation from outside noises. The master suite is situated parallel to the living area to catch the best views of your modern house lot.

House plan design

Customize This House

If you like this house, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

View Customized House Plans Examples Customization Pricing Guide

Describe Your Customizations

    Sign me up to Newsletter

    Blueprints That You Get

    Plot Plan (+$100)

    Construction Notes

    Foundation Plan

    Slab or Crawl | On request - Basement, Pier & Beam.
    House foundation design showing foundation layout with structural elements.

    Plumbing Plan

    Shows the layout of plumbing fixtures with specifications.

    Floor Plan

    Indicates house layout with dimensioned walls, doors, windows, etc.

    Roof Construction Plan

    Shows roof layout and structural specifications.

    Roof Plan

    Dimensioned roof layout indicating slopes, roof areas and decorative elements.

    Sections

    Cut through the building showing detailed floor, wall, and roof construction elements with specifications

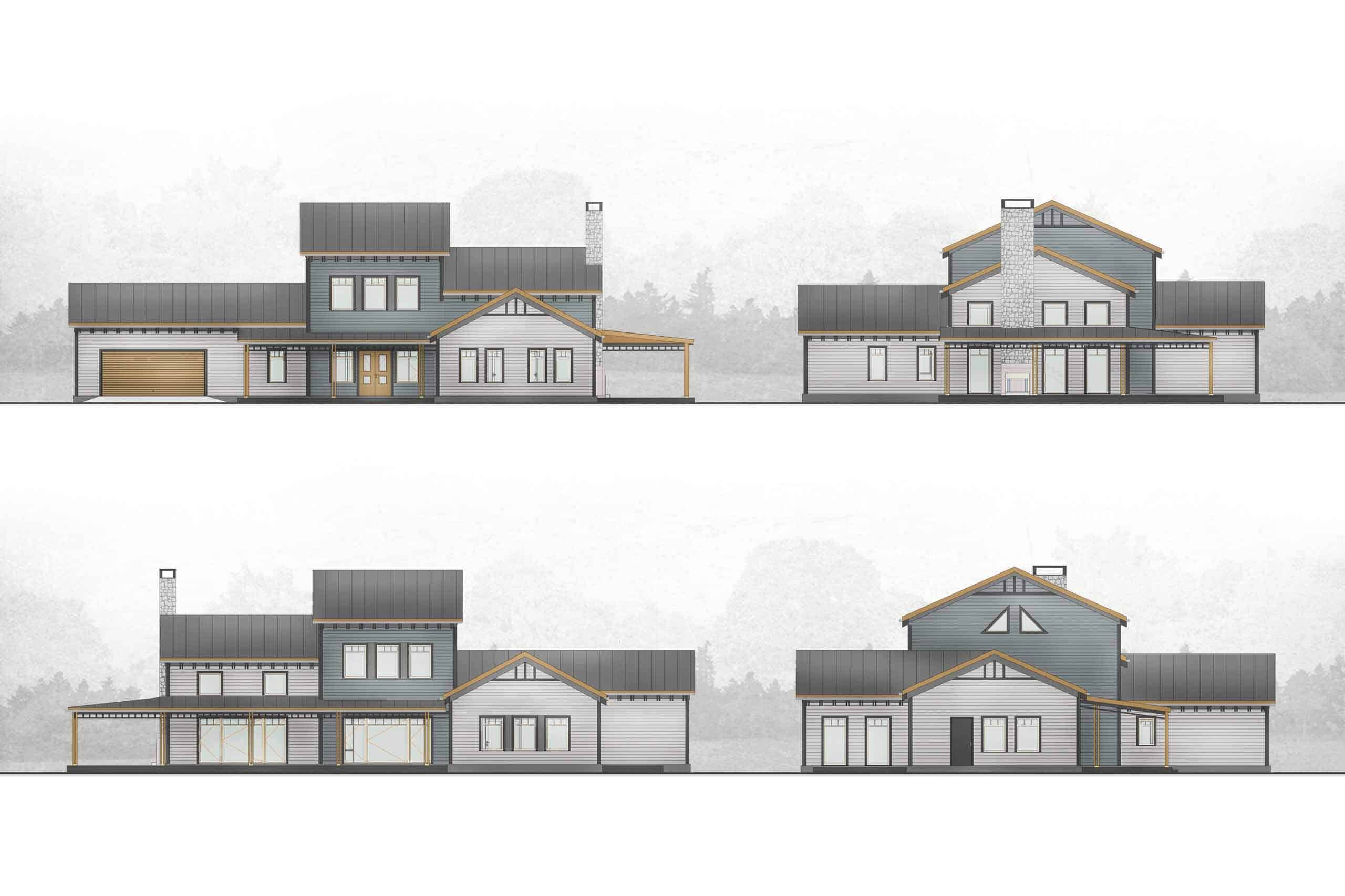

    Elevations

    Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

    Construction Details

    Detailed house cut-away thought floor, exterior wall and roof with outlined specifications. Door and window details too.

    Electrical Plan

    Home plan layout indicating locations of electrical elements.

    HVAC Plan

    Indicates location and specifications for heating, ventilation and air conditioning.

    Furniture Plan

    House plan layout indicating room sizes and suggested furniture layout.

    Door and Window Schedule

    List or all doors and windows with indicated specifications for manufacturer.

    General Specifications

    Plumbing, electrical and mechanical specifications

    Plot Plan

    Some counties require to have a plot plan in order to obtain a building permit. The plot plan shows where the house will be located on your property, so the builder would know where exactly to pour foundations. In order for us to produce a plot plan, you would need to send us your plot topography drawing or write us your plot boundary dimensions with stated setbacks. The plot plan would also show plot size, existing and new structures, set back lines, sewage disposal systems, utilities, power lines, driveway, paving, existing trees, etc.

    Electrical Plan

    Each customer knows better where they would like to locate lighting, switches or outlets. After you purchase the house construction drawings, if you would like to make electrical layout changes, send us your comments and we will update electrical plan for Free.

    Structural Requirements

    The construction drawing set must be reviewed by a local structural engineer, as of the different structural requirements in each county. Each location has different soil conditions as well as different load requirements for snow, wind, seismic, etc. For this reason structural engineer would need to specify supporting structure including beams, girders, headers, rafters/trusses, columns, etc. Also, most of the building departments require to get a local structural engineer’s stamps to obtain a building permit. After the engineer’s review, if there is a need to update the construction drawing set according to engineer's structural specifications, we will update the drawings for Free and will issue an updated drawing set.

    House Plans

    Free Study Set Brochure

    Study Brochure includes floor plans, 3D images, elevations, Floor-Wall-Roof construction details, specifications, sustainable construction techniques, etc.

      Sign me up to Newsletter

      See How Your Preferred House Plan Sits On Your Lot For Free

      Send us your plot plan drawing, and we'll show you how your desired house will fit on your lot. We will advise on the best location for the house, how to gain more privacy, and how to take advantage of the best lot views.

      Check how floor plan sits on your plot
