Truoba Mini 623

1071 sq/ft    2 Bed    2 Bath

House plan design
Customize This House Plan

House Construction Drawings

$

Truoba Mini 623

1071 sq/ft    2 Bed    2 Bath

House plan design
Customize This House Plan

House Construction Drawings

$



Rate this plan

5/5 - (1 vote)

Tiny House Plan TM 623 with second floor
Tiny House Plan TM 623 with second floor

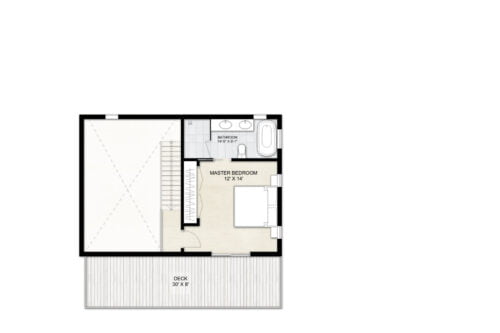

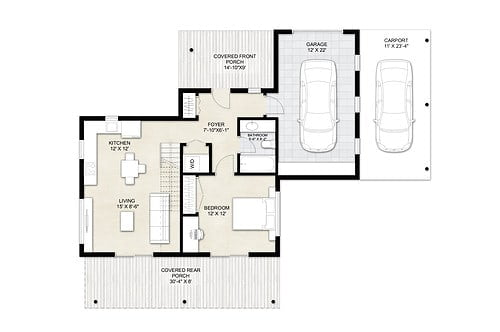

Floor Plan

1071 sq/ft

House Area

302 sq/ft

Garage Area

43′-7″ X 35′-4″

Dimensions
Customize This Plan

Check how floor plan sits on your plot for FREE

  • Open floor plan
  • The living area linked to the porch
  • Private master bedroom
  • Private access to sundeck
  • Laundry closet
  • Vacation home
  • Covered front and rear porch
  • Sundeck

Area

First-floor house area: 721 sq. ft.

Second-floor house area: 350 sq. ft.

Garage area: 302 sq. ft.



Dimension

Width: 43′-7″

Depth: 35′-4″

Height: 25′-4 1/2″



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Wood

Possible different wall finishes: Brick, vinyl, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)

Foundation

Type: Slab and crawl. Additionally, choose the basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Roof pitch: 4/12 (18.43o)

Secondary Roof pitch: 2/12 (9.46o)

Framing: Rafters and trusses

Insulation: 12″ (applicable for additional insulation)



House Interior

Ceiling height: 9′-5″

Living room ceiling height: from 13′-4″ to 18′-4″

Second Floor Ceiling height:  from 7′-11″ to 12′-9″

A Compact Living

Forest Life

This tiny house is designed to serve as a vacation home, that can be built remotely in the forest or as an ADU on the property of your main residence. A high pitch allows having a master suite on the second floor and a vaulted ceiling in the living room. The exterior is constructed using natural materials blending in seamlessly with the surrounding forest environment.

Peace and Comfort

A well-designed layout includes an open floor plan living room and a bedroom/office with a shared bathroom on the lower level. It is designed for forest living, with a sloped ceiling master bedroom on the second floor, that provides a cozy and intimate space to sleep. The living area opens up to the covered porch so you can add screens too. The house also features a carport and garage on the side, perfect for storing outdoor equipment or parking a vehicle.

How much does it cost to build this house?

From other people’s experience, we know that cost to build reports are misleading as they are based on the average square feet construction cost of each state. Only the potential builder who will build your house can tell you how much it would actually cost to build a house for you based on the house size, design features, and your preferred finishes.

Approximate Construction Costs

If you need an approximate cost to build we would advise you to contact a few local general contractors and ask for approximate construction costs. You could send them the house website link or the brochure (download from below) and they should be able to provide approximate construction costs based on the total square footage and house features.

Accurate Construction Costs – Get a Material List

If you want a more accurate construction cost calculation, we would suggest getting the material list of this house according to which the builder could calculate all material costs and add the labor cost. If you need the materials list please fill out the form below and we will send you the payment link which you could pay with your credit card. The material list costs $100 and is in Excel (xls) format.

*As we release new house plans for some houses we might not have the material list yet, but it would take us a week to produce the materials list for you.



Get Material List for $150

    Material List Example

    House plan design

    Customize This House

    If you like this house, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

    View Customized House Plans Examples Customization Pricing Guide

    Describe Your Customizations

      Sign me up to Newsletter

      What You Get

      The List of House Construction Drawings

      Plot Plan (+$100)
      Construction Notes
      Foundation Plan

      Slab or Crawl | On request - Basement, Pier & Beam.
      House foundation design showing foundation layout with structural elements.

      Plumbing Plan

      Shows the layout of plumbing fixtures with specifications.

      Floor Plan

      Indicates house layout with dimensioned walls, doors, windows, etc.

      Roof Construction Plan

      Shows roof layout and structural specifications.

      Roof Plan

      Dimensioned roof layout indicating slopes, roof areas and decorative elements.

      Sections

      Cut through the building showing detailed floor, wall, and roof construction elements with specifications

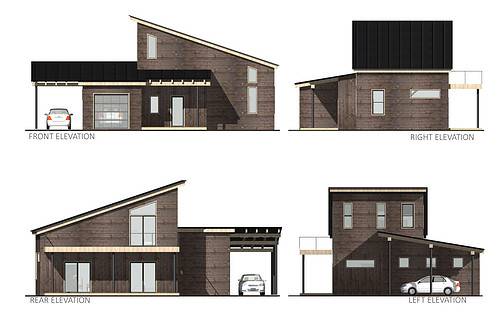

      Elevations

      Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

      Construction Details

      Detailed house cut-away thought floor, exterior wall and roof with outlined specifications. Door and window details too.

      Electrical Plan

      Home plan layout indicating locations of electrical elements.

      HVAC Plan

      Indicates location and specifications for heating, ventilation and air conditioning.

      Furniture Plan

      House plan layout indicating room sizes and suggested furniture layout.

      Door and Window Schedule

      List or all doors and windows with indicated specifications for manufacturer.

      General Specifications

      Plumbing, electrical and mechanical specifications

      Plot Plan

      Some counties require to have a plot plan in order to obtain a building permit. The plot plan shows where the house will be located on your property, so the builder would know where exactly to pour foundations. In order for us to produce a plot plan, you would need to send us your plot topography drawing or write us your plot boundary dimensions with stated setbacks. The plot plan would also show plot size, existing and new structures, set back lines, sewage disposal systems, utilities, power lines, driveway, paving, existing trees, etc.

      Electrical Plan

      Each customer knows better where they would like to locate lighting, switches or outlets. After you purchase the house construction drawings, if you would like to make electrical layout changes, send us your comments and we will update electrical plan for Free.

      Structural Requirements

      The construction drawing set must be reviewed by a local structural engineer, as of the different structural requirements in each county. Each location has different soil conditions as well as different load requirements for snow, wind, seismic, etc. For this reason structural engineer would need to specify supporting structure including beams, girders, headers, rafters/trusses, columns, etc. Also, most of the building departments require to get a local structural engineer’s stamps to obtain a building permit. After the engineer’s review, if there is a need to update the construction drawing set according to engineer's structural specifications, we will update the drawings for Free and will issue an updated drawing set.

      House Plans

      Free Study Set Brochure

      Study Brochure includes floor plans, 3D images, elevations, Floor-Wall-Roof construction details, specifications, sustainable construction techniques, etc.

        Sign me up to Newsletter

        See How Your Preferred House Plan Sits On Your Lot For Free

        Send us your plot plan drawing, and we'll show you how your desired house will fit on your lot. We will advise on the best location for the house, how to gain more privacy, and how to take advantage of the best lot views.
