Truoba Mini 615

850 sq/ft     2 Bed    1 Bath

House Construction Drawings

Clear

You Can Customize This House

Sustainable house exterior
View House Customization

Rate this plan

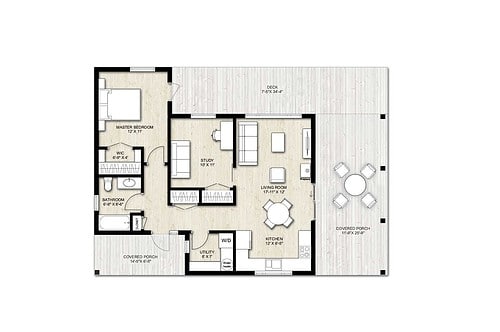

Floor Plan

850 sq/ft

House Area

35’-5″ X 47′-5″

Dimensions
  • Open floor plan
  • Living area linked to the porch
  • Fireplace
  • Home library
  • Main floor master bedroom
  • Master bedroom acess to sundeck
  • Guest bedroom
  • Dan – home office
  • Storage space
  • Guest house
  • Covered front porch
  • Covered side porch
  • Sundeck
Customize This Plan

Check how floor plan fits your property for FREE

Area

House area: 850 sq. ft.



Dimension

Width: 47′-5″

Depth: 35′-5″

Height: 14′-3″



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish:  Brick veneer

Possible different wall finishes:  Wood siding, vinyl, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl. Additionally, choose basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Primary pitch: 2/12 (10°)

Secondary pitch: 0.8/12 (4°)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)



House Interior

Ceiling height: 8′ – 10′-2″

Main living area ceiling height: 10′-3″ – 12′-6″



Heating: HVAC furnace located in the attic above the utility room

A well-rounded home

Flexible layout

This is one of the tiny house plans that was designed to serve as a vacation home or guest house, making the most of a small lot. The character of this modern house is expressed by blurring the lines between the interior and exterior spaces. This layout has great flexibility options as all room areas could be extended to adapt to changes in your lifestyle. The elevated ceiling of the main living area increases the volume of the space while window positioning opens the house up to beautiful views and natural sunlight.

Peace and comfort

The master bedroom is located separately from the living area, giving you privacy and comfort. The master suite is connected to the sundeck, great for morning coffee or afternoon barbecues. The second bedroom can be transformed into a den, a hobby room or a home office, depending on your needs. House designs like these also offer plenty of storage space, tucked away in the built-in closet and the living room shelf-wall.
