Truoba Mini 217

 780 sq/ft     2 Bed    1 Bath

House Construction Drawings

Clear

You Can Customize This House

Sustainable house exterior
View House Customization

Truoba Mini 217

 780 sq/ft     2 Bed    1 Bath

House Construction Drawings

Clear

You Can Customize This House

Sustainable house exterior
View House Customization

Rate this plan

Floor Plan

780 sq/ft

House Area

39’-5″ X 36′-10″

Dimensions
  • Open floor plan
  • Living area linked to the porch
  • Fireplace
  • Main floor master bedroom
  • Walk-in closet
  • Guest bedroom
  • Storage space
  • Empty nester
  • Guest house
  • Covered front porch
  • Covered rear porch
  • Sundeck
Customize This Plan

Check how floor plan fits your property for FREE

Area

House area: 780 sq. ft.



Dimension

Width: 39′-5″

Depth: 36′-10″

Height: 12′



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Wood siding

Possible different wall finishes: Vinyl, brick veneer, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl. Additionally, choose basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Roof pitch: 1/12 (5°)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)



House Interior

Ceiling height: 8′-9″ – 11′

Cozy inside and out

The two-bedroom house design is the perfect blend between compact and comfortable, a rare find in tiny house plans. The main living areas have access to a covered porch, great for spending time outside. Both bedrooms are located away from the living space to give more privacy while the master bedroom is also situated parallel to the living area, giving you the best views of the open lot.

House Construction Drawings

Cover Sheet and Construction Notes
Foundation Plan

Slab and Crawl | On request - Basement, Pier & Beam.
House foundation design showing foundation layout with structural elements.

Plumbing Plan

Shows the layout of plumbing fixtures with specifications.

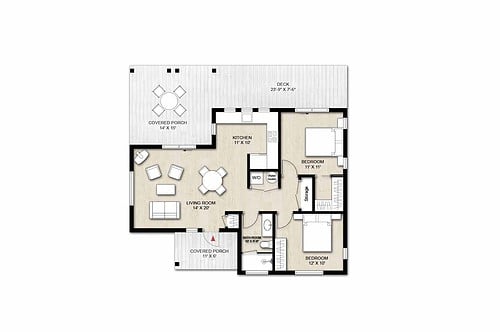

Floor Plan

Indicates house layout with dimensioned walls, doors, windows, etc.

Roof Construction Plan

Shows roof layout and structural specifications.

Roof Plan

Dimensioned roof layout indicating slopes, roof areas and decorative elements.

Sections

Cut through the building showing detailed floor, wall, and roof construction elements with specifications

Elevations

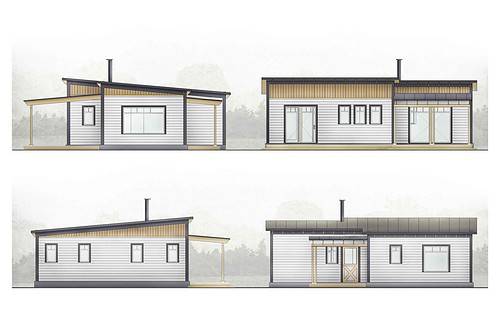

Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

Construction Details

Detailed house cut-away with outline specifications.

Electrical Plan

Home plan layout indicating locations of electrical elements.

HVAC Plan

Indicates location and specifications for heating, ventilation and air conditioning.

Furniture Plan

House plan layout indicating room sizes and suggested furniture layout.

Door and Window Schedule

List or all doors and windows with indicated specifications for manufacturer.

General Specifications

Plumbing, electrical and mechanical specifications

Free Study Set Brochure

Study Brochure includes floor plans, 3D images, elevations, Floor-Wall-Roof construction details, specifications, sustainable construction techniques, etc.
