Truoba Class 115

2320 sq/ft     3 Bed     2 Bath

House Construction Drawings

Clear
$

You Can Customize This House

Sustainable house exterior
View House Customization

Truoba Class 115

2320 sq/ft     3 Bed     2 Bath

House Construction Drawings

Clear
$

You Can Customize This House

Sustainable house exterior
View House Customization

Rate this plan

Truoba 3 bedroom house plan
Truoba 3 bedroom house plan with basement

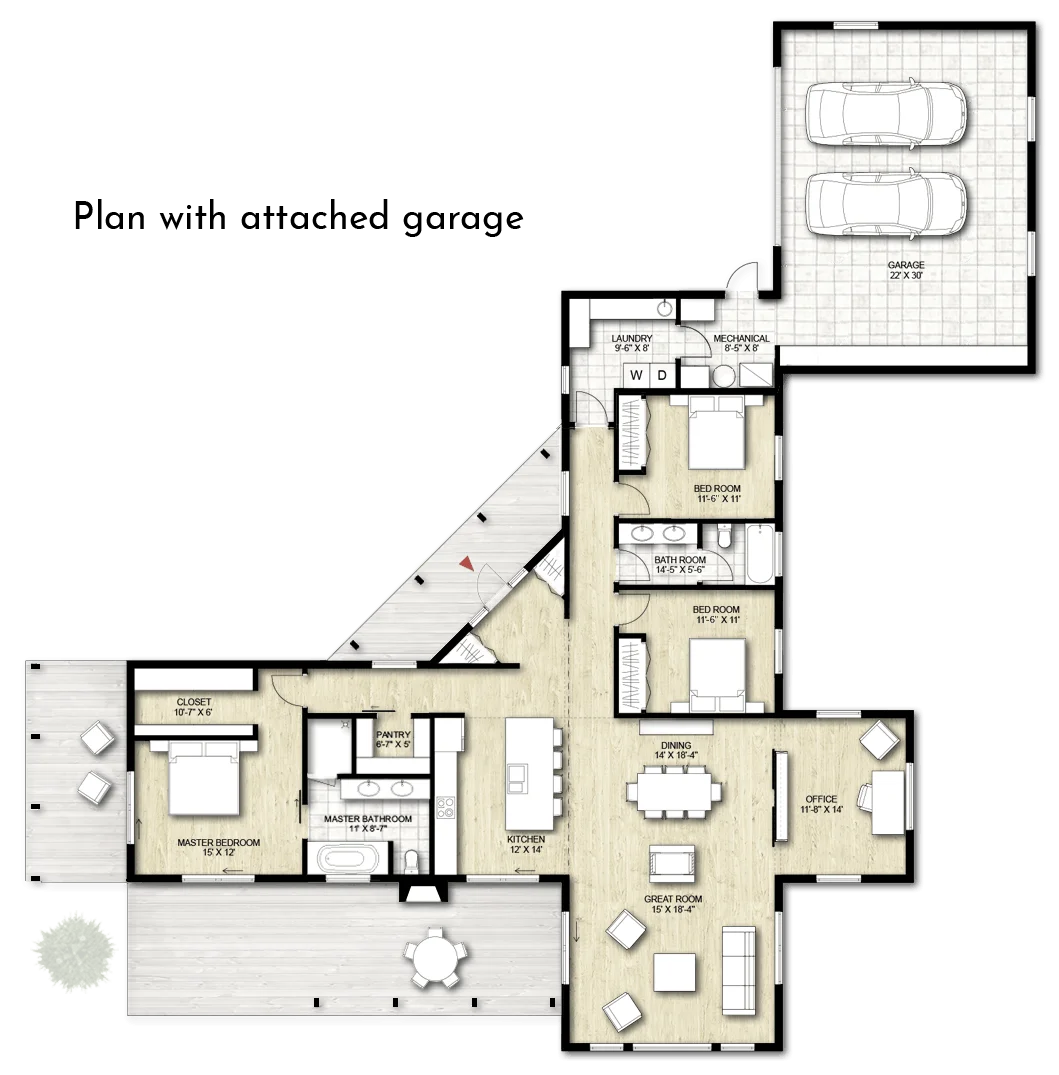

Truoba 3 bedroom house plan with attached garage

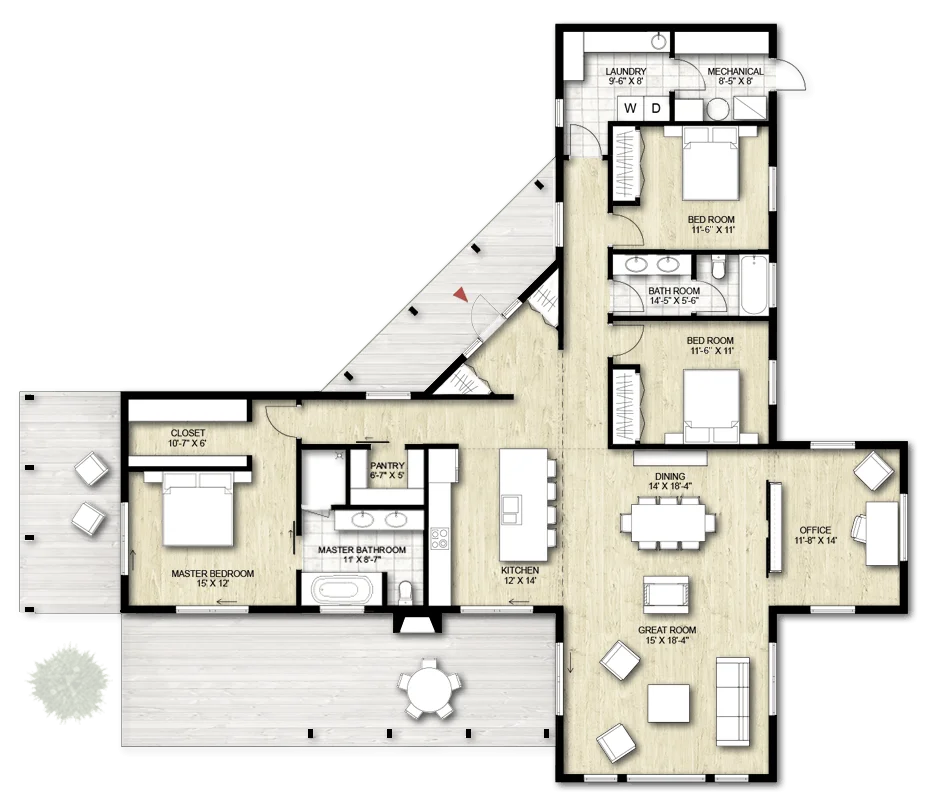

Floor Plan

2320 sq/ft

House Area

77’-2″ X 67′-6″

Dimensions
  • Open floor plan
  • Living area linked to the terrace
  • Fireplace
  • Master Bedroom separate from other bedrooms
  • Walk-in closet
  • Private terrace
  • Home office
  • Walk-in pantry
  • Storage space
  • Covered porch
  • Sundeck
  • Outside fireplace
Customize This Plan

Check how floor plan fits your property for FREE

360° View

Add Detached Garage

View
Truoba Garage 118 garage plan

Area

House area: 2320 sq. ft.

Garage area: 662sq. ft.



Dimension

Width: 77′-2″

Depth: 67′-6″

Height: 18′



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Natural wood siding

Possible different wall finishes: Vinyl, brick veneer, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl. Additionally, choose basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Roof pitch: 1/12 (5°)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)

Snow load: calculated for 10 PSF, 25 PSF and 35 PSF



House Interior

Ceiling height: 9′/ 9′-6″

Main living area ceiling height: 14′ – 16′-8″



Functional aesthetics

Elegance and efficiency

The focus of this house plan was to create an aesthetically well-designed modern house which, at the same time, would be sustainable and energy-efficient with additional exterior wall insulation. The modern cabin style character is expressed through the seamless connection of interior and exterior spaces. The outside views flow in through the open floor plan and high ceiling helps fill each space with natural daylight. A spacious living room ties the whole house together, with the main fireplace serving as a sculptural focal point.

A balanced family home

The master suite is located separately from the rest of the bedrooms and entertaining spaces. The master bedroom has its own walk-in closet, bathroom, and a private master porch. The spacious kitchen is opened to the dining area and the great room, with an outside fireplace on the main porch, perfect for BBQs. All secondary zones, such as a utility room and storage, are located at the end of the house and can be easily extended to have more space.

Customer Reviews
5.0 Based on 6 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
    MK
    07/22/2020
    Mary K.
    United States United States
    Nature House

    We purchased land with a view of the Appalachian Mountains and the Potomac River. We asked a local architect to design a plan for us to bring the outdoors inside. After months of meetings, it was clear we were not going to get our nature dream house. Disappointed and thousands of dollars poorer, we searched online. When I first saw the Truoba plan I knew it was right for us. The construction did not disappoint. We have gorgeous views from all windows. With the long axis of the living room, dining room, guest wing built on a basement foundation it brought the views into the treetops. With windows and doors on either side we get wonderful cross breezes. It wasn’t until July that we used our HVAC for cooling. Some who see it call it our treehouse, others our river house, others our mountain house. We call it wonderful. All our contract workers said the house fit the land like a glove. The house lends itself to entertaining. I can be in the kitchen but see everyone in the living room, dining room and the porch. I don’t feel isolated from our guests. Yet the master bedroom is off on its own wing giving us privacy when we want it, and our guests privacy when they want it. The rooms are not many, and they are not huge, but the vaulted ceilings give it a sense of expanse and openness. We are thrilled with our new home.

    PA
    03/15/2020
    Paul A.
    Utah, USA

    It's as if the architect came to our building site and specifically designed this house plan for us.

    JF
    06/08/2019
    Jodie F.
    South Carolina, USA

    We built this home plan and absolutely love it! We did make several changes to the house floor plan, facade materials, decks, and porches, and added a 4'-6' crawl space. We loved that the floor plan lent itself to our individual tastes and needs. We added footage (3'-5')at the ends to enlarge the guest rooms and the Master bath. That was fine for us as we planned to downsize anyway. The very tall ceilings and clean lines make those rooms and others feel bigger than the floor area is. This was a challenge for our builder so I would suggest really vetting your builder to be sure she/he has experience with modern home-building and all techniques related therein.

    KM
    01/08/2019
    Kelly M.
    Red Lodge, Montana, USA

    I worked with them for around 3 months. They were very professional, timely, and easy to work with. I didn't change much because it was such a great layout. They did a great job working through details of the placement on the lot for the homeowners as well!!!! I worked on a remodel for a different project and dealing with local architects was much more expensive and difficult!! Can't say enough good things about them.

    MG
    09/13/2018
    Max G.
    Mississippi, USA

    We liked the way it looked and we liked the kitchen being opened to the living room space and we liked that it had a home office. Also, liked that the roof sloped one way. This house design is very different from anything in our area. Everyone mentions how unique it is.

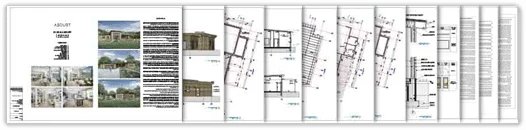

    The List of House Construction Drawings

    Get this house construction drawings and build your dream home

    House Plans
    Cover Sheet and Construction Notes

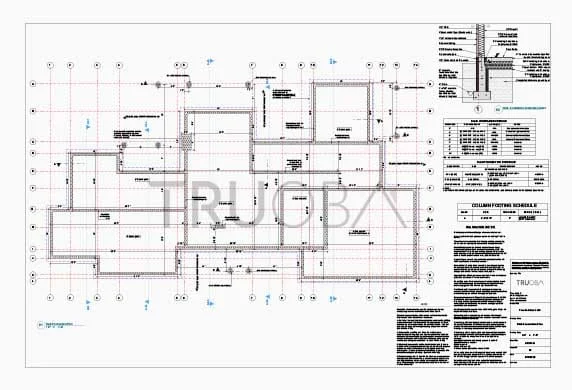

    Foundation Plan

    Slab and Crawl | On request - Basement, Pier & Beam.
    House foundation design showing foundation layout with structural elements.

    Plumbing Plan

    Shows the layout of plumbing fixtures with specifications.

    Floor Plan

    Indicates house layout with dimensioned walls, doors, windows, etc.

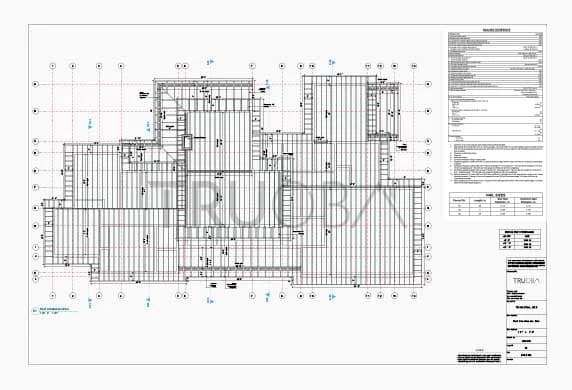

    Roof Construction Plan

    Shows roof layout and structural specifications.

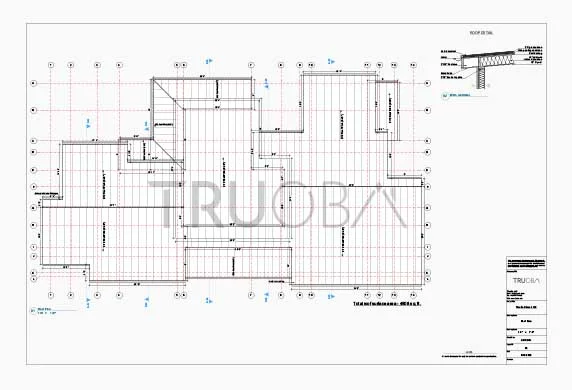

    Roof Plan

    Dimensioned roof layout indicating slopes, roof areas and decorative elements.

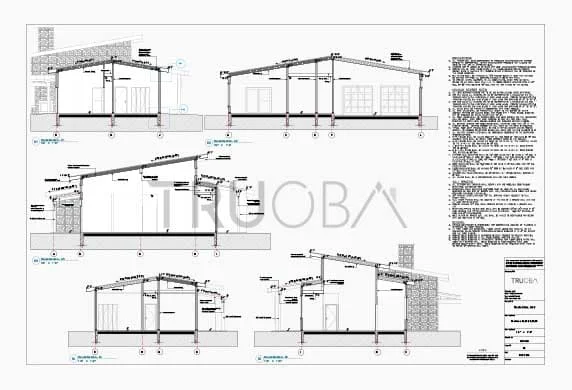

    Sections

    Cut through the building showing detailed floor, wall, and roof construction elements with specifications

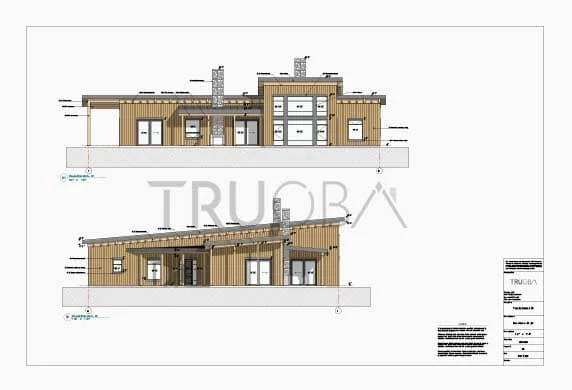

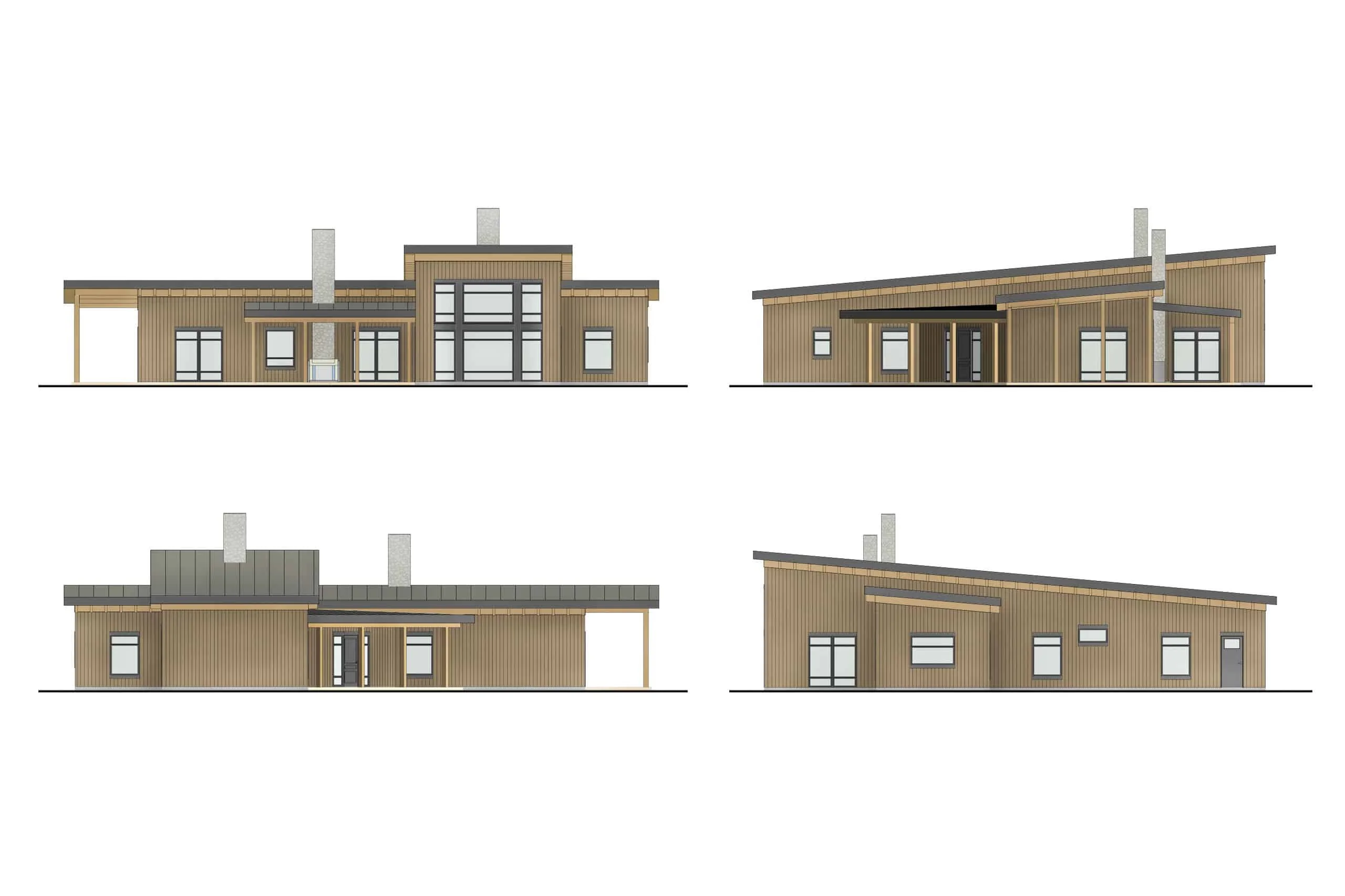

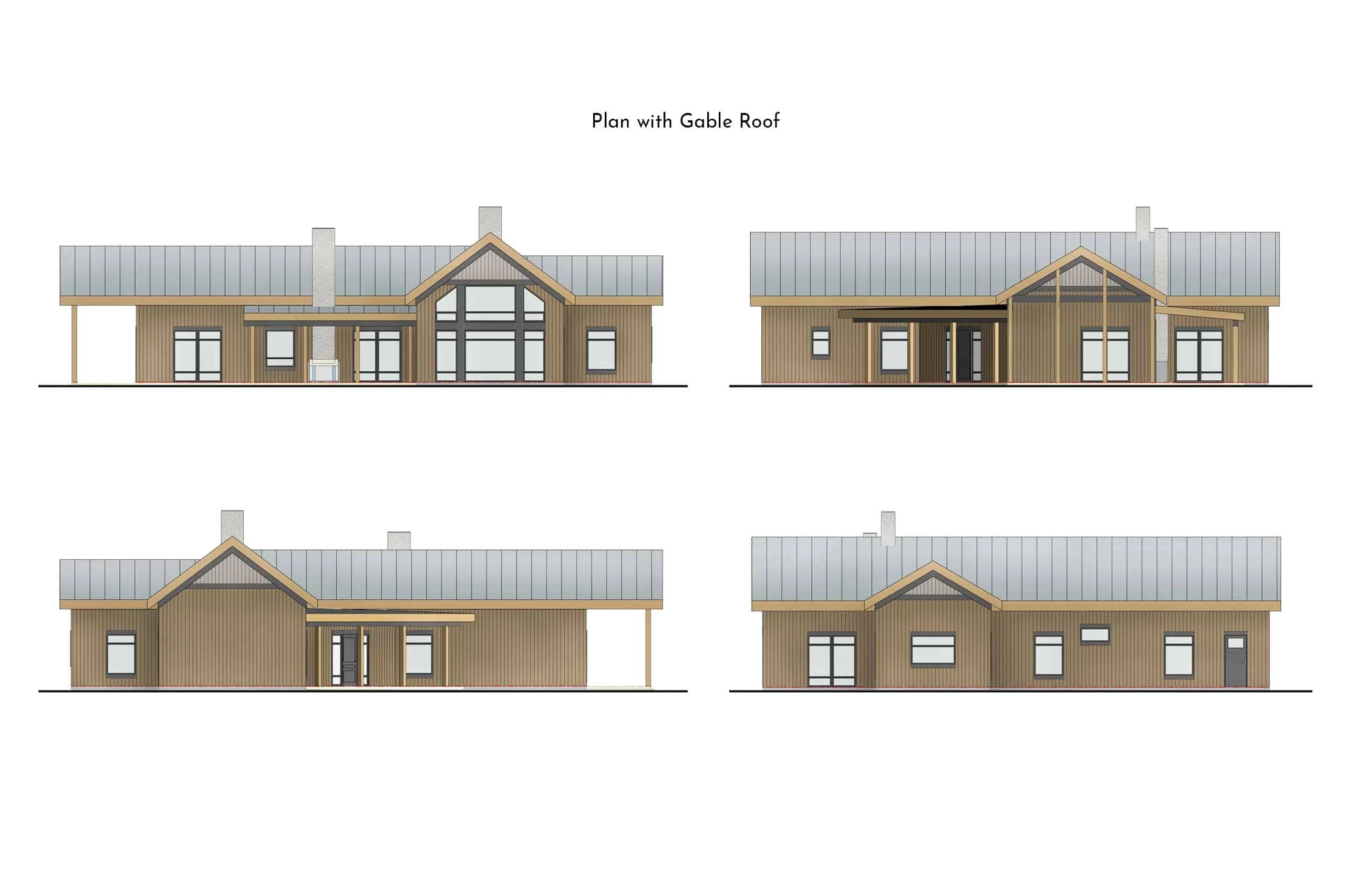

    Elevations

    Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

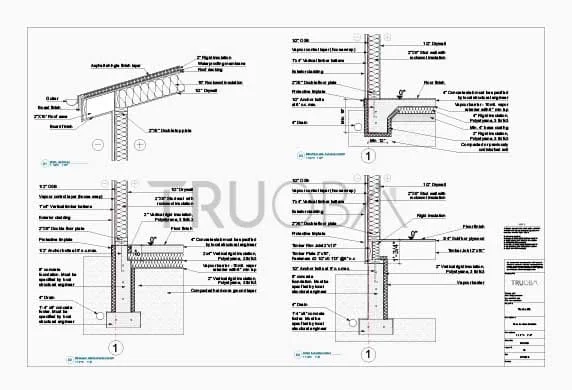

    Construction Details

    Detailed house cut-away with outline specifications.

    Electrical Plan

    Home plan layout indicating locations of electrical elements.

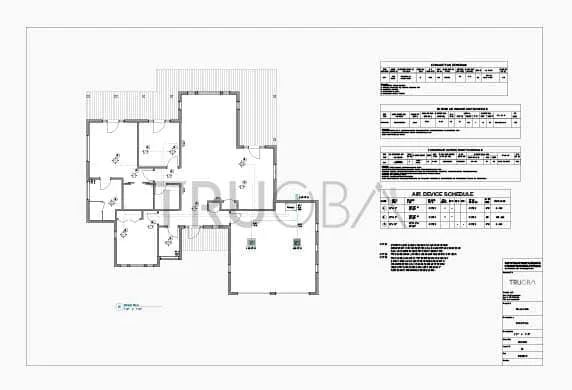

    HVAC Plan

    Indicates location and specifications for heating, ventilation and air conditioning.

    Furniture Plan

    House plan layout indicating room sizes and suggested furniture layout.

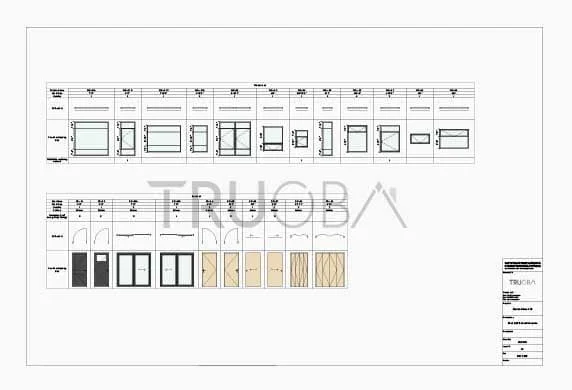

    Door and Window Schedule

    List or all doors and windows with indicated specifications for manufacturer.

    General Specifications

    Plumbing, electrical and mechanical specifications

    House Plans

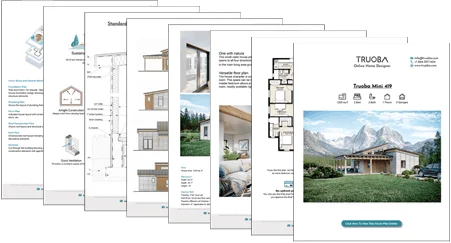

    Free Study Set Brochure

    Study Brochure includes floor plans, 3D images, elevations, Floor-Wall-Roof construction details, specifications, sustainable construction techniques, etc.
