Truoba 321

  1410 sq/ft     3 Bed     2 Bath

House plan design
Customize This House Plan

House Construction Drawings

Clear
$

Truoba 321

  1410 sq/ft     3 Bed     2 Bath

House plan design
Customize This House Plan

House Construction Drawings

Clear
$

Rate this plan

Floor Plan

1410 sq/ft

House Area

42′-5″ X 51′-10″

Dimensions
Customize This Plan

Check how floor plan sits on your plot for FREE

  • Open floor plan
  • Living area linked to the terrace
  • Fireplace
  • Master Bedroom separate from other bedroom
  • Master Bedroom access to the deck
  • Guest bedroom
  • Open home office
  • Storage space
  • Vacation home
  • Covered front porch
  • Covered side porch
  • Sundeck

Area

House area: 1410 sq. ft.

First-floor house area: 1257 sq. ft.

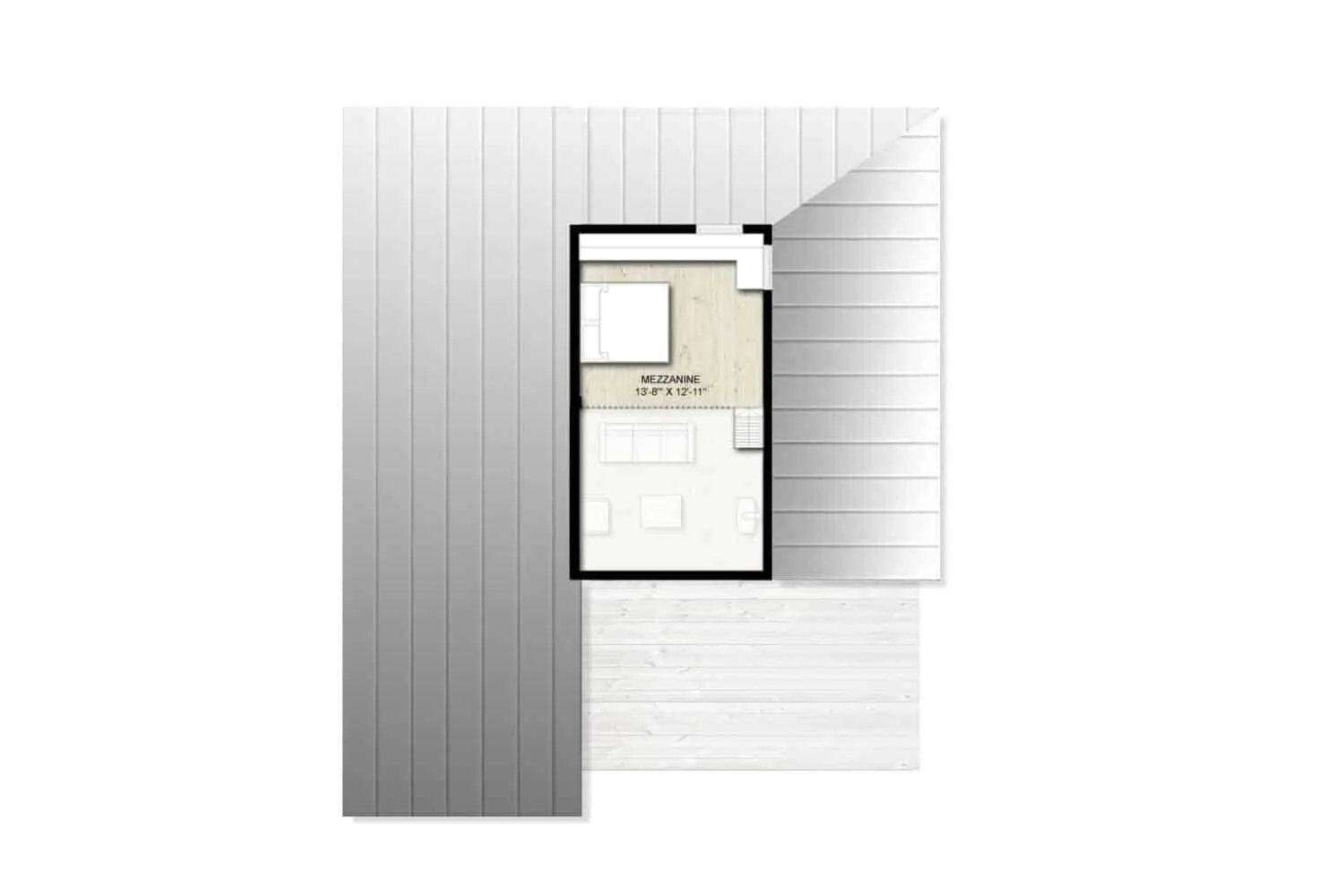

Second-floor house area: 153 sq. ft. is calculated from 7′ ceiling height as of the regulations. The total second-floor flooring area is 176 sq. ft.



Dimension

Width: 42′-5″

Depth: 51′-10″

Height: 21′-6″



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Wood siding

Possible different wall finishes: Vinyl, brick veneer, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl. Additionally, choose basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Primary roof pitch: 3 1/2:12 (16o)

Secondary roof pitch: 1:12 (5o)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)

Snow load: calculated for 10 PSF, 25 PSF and 35 PSF



House Interior

Ceiling height: 9′-6″

Main living area ceiling height: from 12′-8″ to 16′

Cozy yet spacious

One with nature

This small house plan with loft is designed to connect the interior and exterior spaces seamlessly. The cabin layout allows having the view to all four directions, filling the rooms with continuing sunlight. A modern home office or hobby room, attached to the main living area gives you the opportunity to escape to nature and work at the same time.

Versatile floor plan

The airy kitchen and living room are designed as one continuous space in an open floor plan. This space can be easily transformed into an additional bedroom with a partition wall. The separately located master bedroom allows privacy and comfort and includes a master bathroom and a built-in wall closet. The utility room, readily available right by the entrance, can be extended to have a more clutter-free storage space.

House plan design

Customize This House

If you like this plan, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

View Customized House Plans Examples

Describe Your Customizations

    Customization Pricing Guide

    During house customization process there is no limit for revisions. Customization process continues until you are absolutely sure the house plan is for you and there is nothing else you would like to change.



    MINOR CHANGES

    Cost $100 - $500

    Examples:

    - Reverse house plan

    - Minor layout redesign for kitchen, living room, bedrooms, bathrooms, etc.

    - Change exterior design with different siding layout, materials and colors.

    - Extending 1-2 rooms and rearranging room layout.

    - Adding or removing 1-2 rooms (depending on complexity and square footage).

    - Custom house structure such as masonry, ICF, etc. or changing 2"x 6" framing to 2"x 4", 2"x 8", etc.

    - Adding garage space for an additional car or changing garage entry location.

    - Changing, adding or removing doors and windows.

    - Changing roof pitch.



    MEDIUM CHANGES

    Cost $500 - $1000

    Examples:

    - Redesigning kitchen, living room, bedrooms, bathrooms, etc. and rearranging room location in the floor plan.

    - Change roof type to gable, hip, flat, lean-to roof, etc.

    - House expansion with additional rooms (depending on complexity and additional square footage).

    - Significant exterior changes with additional building massing design, different siding layout, materials and colors.



    MAJOR CHANGES

    Cost $1000 +

    Examples:

    - Redesigning over 40% of the floor plan.

    - Adding significant square footage.

    - Adding a floor with new room layout design.

    What You Get

    The List of House Construction Drawings

    Plot Plan (+$100)
    Construction Notes
    Foundation Plan

    Slab and Crawl | On request - Basement, Pier & Beam.
    House foundation design showing foundation layout with structural elements.

    Plumbing Plan

    Shows the layout of plumbing fixtures with specifications.

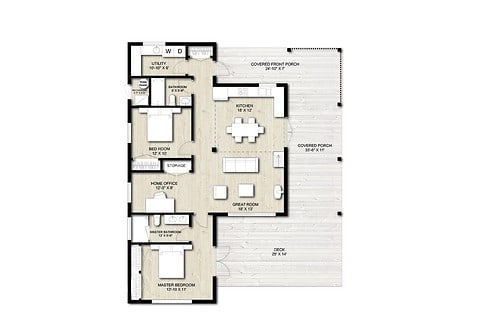

    Floor Plan

    Indicates house layout with dimensioned walls, doors, windows, etc.

    Roof Construction Plan

    Shows roof layout and structural specifications.

    Roof Plan

    Dimensioned roof layout indicating slopes, roof areas and decorative elements.

    Sections

    Cut through the building showing detailed floor, wall, and roof construction elements with specifications

    Elevations

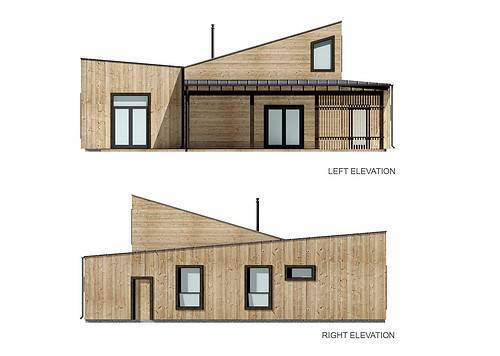

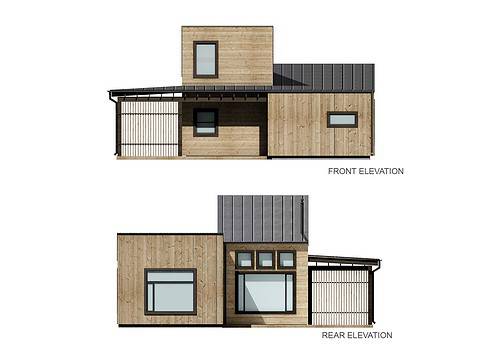

    Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

    Construction Details

    Detailed house cut-away thought floor, exterior wall and roof with outlined specifications. Door and window details too.

    Electrical Plan

    Home plan layout indicating locations of electrical elements.

    HVAC Plan

    Indicates location and specifications for heating, ventilation and air conditioning.

    Furniture Plan

    House plan layout indicating room sizes and suggested furniture layout.

    Door and Window Schedule

    List or all doors and windows with indicated specifications for manufacturer.

    General Specifications

    Plumbing, electrical and mechanical specifications

    More Info
    Plot Plan

    Some counties require to have a plot plan in order to obtain a building permit. The plot plan shows where the house will be located on your property, so the builder would know where exactly to pour foundations. In order for us to produce a plot plan, you would need to send us your plot topography drawing or write us your plot boundary dimensions with stated setbacks. The plot plan would also show plot size, existing and new structures, set back lines, sewage disposal systems, utilities, power lines, driveway, paving, existing trees, etc.

    Electrical Plan

    Each customer knows better where they would like to locate lighting, switches or outlets. After you purchase the house construction drawings, if you would like to make electrical layout changes, send us your comments and we will update electrical plan for Free.

    Structural Requirements

    The construction drawing set must be reviewed by a local structural engineer, as of the different structural requirements in each county. Each location has different soil conditions as well as different load requirements for snow, wind, seismic, etc. For this reason structural engineer would need to specify supporting structure including beams, girders, headers, rafters/trusses, columns, etc. Also, most of the building departments require to get a local structural engineer’s stamps to obtain a building permit. After the engineer’s review, if there is a need to update the construction drawing set with the engineer's notes, we will update the drawings and will issue an updated drawing set.

    House Plans

    Free Study Set Brochure

    Study Brochure includes floor plans, 3D images, elevations, Floor-Wall-Roof construction details, specifications, sustainable construction techniques, etc.
