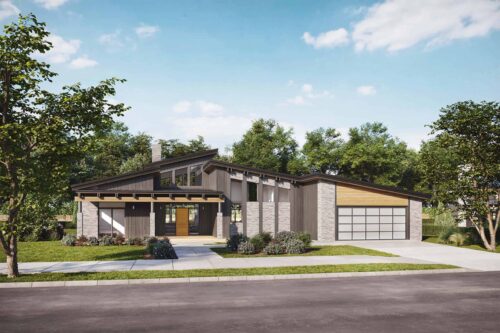

Truoba 622

2091 sq/ft     3 Bed    2 Bath

House plan design
Customize This House Plan

House Construction Drawings

$

Truoba 622

2091 sq/ft     3 Bed    2 Bath

House plan design
Customize This House Plan

House Construction Drawings

$



Rate this plan

5/5 - (1 vote)

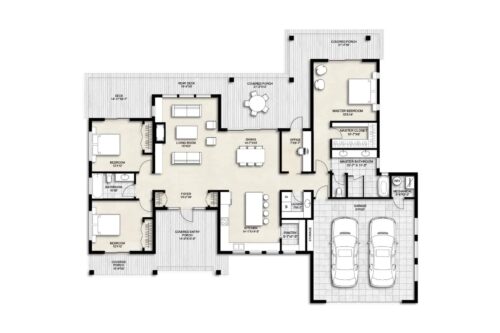

Floor Plan

2091 sq/ft

House Area

655 sq/ft

Garage Area

77′-9″ X 63′-4″

Dimensions
Customize This Plan

Check how floor plan sits on your plot for FREE

  • Open floor plan
  • Living area linked to the porch
  • Main floor master bedroom
  • Walk-in closet
  • Home Office
  • Pantry
  • Covered front porch
  • Covered rear porch

Area

House area: 2091 sq. ft.

Garage area: 655 sq. ft.



Dimension

Width: 77′-9″

Depth: 63′-4″

Height: 23′-5″



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Wood and stone

Possible different wall finishes: Vinyl, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)

Foundation

Type: Slab and crawl.

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Primary pitch: 3/12 (14o)

Secondary pitch: 2/12 (10o)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)



House Interior

Ceiling height: 9′-6″

Kitchen ceiling height: from 14′-8″ to 16′-9″

Living room ceiling height: from 18′ to 21′-9″

Balanced Living

Family Space

The modern house expresses the character combination of the mid-century and modern minimalistic styles. It reflects the needs of contemporary living by giving you a continuous flow of the inside layout. House plans like these are divided into several different zones, creating designated spaces for all events and family members.

Space for Comfortable Life

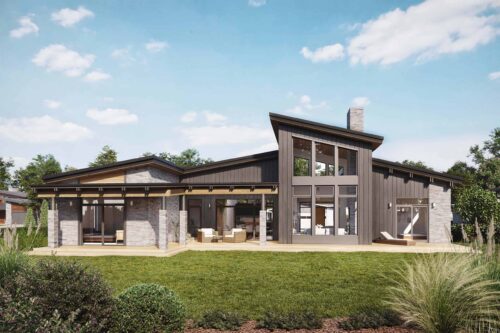

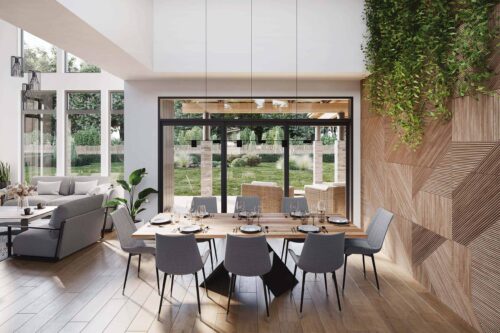

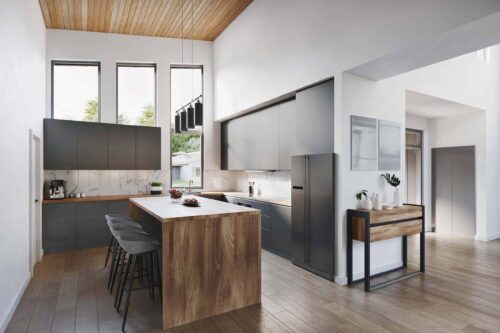

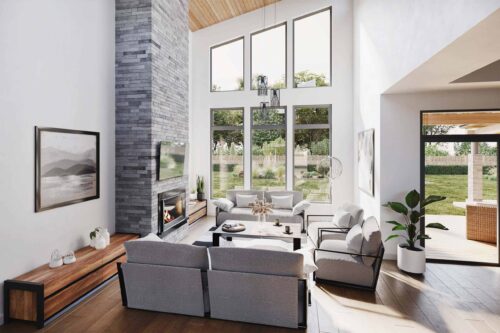

The back of the house accommodates a main living area and a dining room. The kitchen is conveniently located on the front of the house which has clerestory windows to bring the light from the house front. The master bedroom with a large bathroom and an open closet is tucked on the side of the house, giving you peace, privacy, and view to the best view of the open lot. This contemporary house also includes second and third bedrooms that are located away from the master bedroom. The small study or home office area has views to the back and access to the covered rear porch.

How much does it cost to build this house?

From other people’s experience, we know that cost to build reports are misleading as they are based on the average square feet construction cost of each state. Only the potential builder who will build your house can tell you how much it would actually cost to build a house for you based on the house size, design features, and your preferred finishes.

Approximate Construction Costs

If you need an approximate cost to build we would advise you to contact a few local general contractors and ask for approximate construction costs. You could send them the house website link or the brochure (download from below) and they should be able to provide approximate construction costs based on the total square footage and house features.

Accurate Construction Costs – Get a Material List

If you want a more accurate construction cost calculation, we would suggest getting the material list of this house according to which the builder could calculate all material costs and add the labor cost. If you need the materials list please fill out the form below and we will send you the payment link which you could pay with your credit card. The material list costs $100 and is in Excel (xls) format.

*As we release new house plans for some houses we might not have the material list yet, but it would take us a week to produce the materials list for you.



Get Material List for $150

    Material List Example

    House plan design

    Customize This House

    If you like this house, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

    View Customized House Plans Examples Customization Pricing Guide

    Describe Your Customizations

      Sign me up to Newsletter

      What You Get

      The List of House Construction Drawings

      Plot Plan (+$100)
      Construction Notes
      Foundation Plan

      Slab or Crawl | On request - Basement, Pier & Beam.
      House foundation design showing foundation layout with structural elements.

      Plumbing Plan

      Shows the layout of plumbing fixtures with specifications.

      Floor Plan

      Indicates house layout with dimensioned walls, doors, windows, etc.

      Roof Construction Plan

      Shows roof layout and structural specifications.

      Roof Plan

      Dimensioned roof layout indicating slopes, roof areas and decorative elements.

      Sections

      Cut through the building showing detailed floor, wall, and roof construction elements with specifications

      Elevations

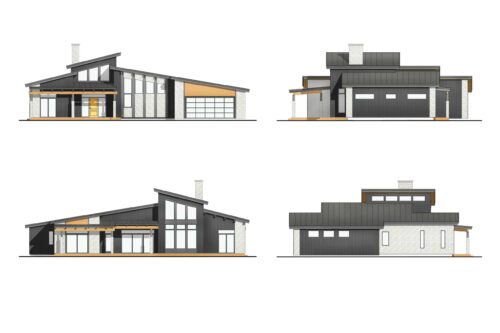

      Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

      Construction Details

      Detailed house cut-away thought floor, exterior wall and roof with outlined specifications. Door and window details too.

      Electrical Plan

      Home plan layout indicating locations of electrical elements.

      HVAC Plan

      Indicates location and specifications for heating, ventilation and air conditioning.

      Furniture Plan

      House plan layout indicating room sizes and suggested furniture layout.

      Door and Window Schedule

      List or all doors and windows with indicated specifications for manufacturer.

      General Specifications

      Plumbing, electrical and mechanical specifications

      Plot Plan

      Some counties require to have a plot plan in order to obtain a building permit. The plot plan shows where the house will be located on your property, so the builder would know where exactly to pour foundations. In order for us to produce a plot plan, you would need to send us your plot topography drawing or write us your plot boundary dimensions with stated setbacks. The plot plan would also show plot size, existing and new structures, set back lines, sewage disposal systems, utilities, power lines, driveway, paving, existing trees, etc.

      Electrical Plan

      Each customer knows better where they would like to locate lighting, switches or outlets. After you purchase the house construction drawings, if you would like to make electrical layout changes, send us your comments and we will update electrical plan for Free.

      Structural Requirements

      The construction drawing set must be reviewed by a local structural engineer, as of the different structural requirements in each county. Each location has different soil conditions as well as different load requirements for snow, wind, seismic, etc. For this reason structural engineer would need to specify supporting structure including beams, girders, headers, rafters/trusses, columns, etc. Also, most of the building departments require to get a local structural engineer’s stamps to obtain a building permit. After the engineer’s review, if there is a need to update the construction drawing set according to engineer's structural specifications, we will update the drawings for Free and will issue an updated drawing set.
