Truoba Class 216

 2736 sq/ft     3 Bed     2.5 Bath

House plan design
Customize This House Plan

House Construction Drawings

Clear
$

Truoba Class 216

 2736 sq/ft     3 Bed     2.5 Bath

House plan design
Customize This House Plan

House Construction Drawings

Clear
$

Rate this plan

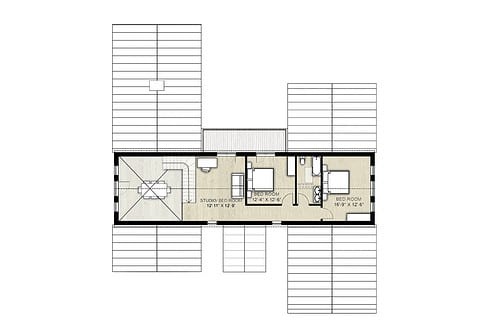

Truoba Class 216 house plan, secon floor house floor plan

Floor Plan

2736 sq/ft

House Area

448 sq/ft

Garage Area

73′-5″ X 67′-5″

Dimensions
Customize This Plan

Check how floor plan sits on your lot for FREE

  • Open floor plan
  • Living area linked to the porch
  • Open space to the second floor
  • Fireplace
  • Master Bedroom separate from other bedrooms
  • Walk-in closet
  • Main floor master bedroom
  • Home office
  • Walk-in pantry
  • Storage space
  • Mud room
  • Covered porch
  • Sundeck
  • Outside fireplace

Area

House area: 2736 sq. ft.

Garage area: 448 sq. ft.



Dimension

Width: 67′-5″

Depth: 73′-5″

Height: 30′



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Vinyl siding

Possible different wall finishes: wood, brick veneer, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl. Additionally, choose basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Roof pitch: 9/12 (37o)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)

Snow load: calculated for 10 PSF, 25 PSF and 35 PSF



House Interior

Ceiling height: 9′-2″

Main living area ceiling height: pitch top 17′

Contemporary traditions

Modern farmhouse

This modern house design is a combination of traditional American farmhouse and minimalistic contemporary style architecture. It reflects the needs of contemporary living by giving you diverse inside spaces, perfect for spending quality time with the family or having friends over. All main ground-floor spaces are connected to the open outside porch, that can be used for relaxing or barbecuing. The second floor has a balcony that allows enjoying open site views from above.

Room for everyone

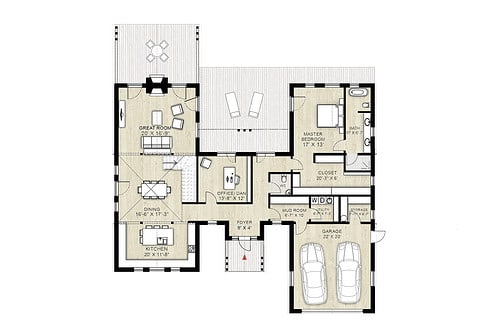

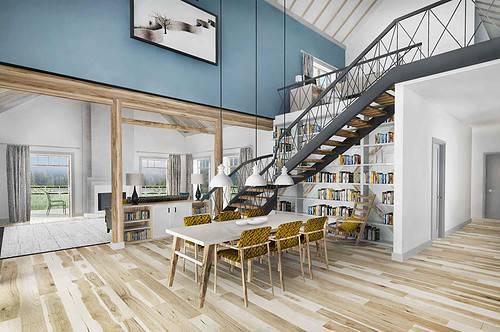

The ground floor plan is divided into a few different zones. Left-wing accommodates the main living area and an open plan kitchen, a living room, and a double story dining area. On the right-wing, there is a private master bedroom with a large bathroom and an open closet. It is situated parallel to the living room to catch the best views of the open lot. The ground-floor room between the two house wings can be used as a home office or den. The second floor includes two large bedrooms with a bathroom and an open studio space, that can be used as a home library or hobby room. This room can also be transformed into a fourth bedroom by adding partition walls, making it a truly custom home.

What You Get

The List of House Construction Drawings

Site Plan (+$100)
Construction Notes
Foundation Plan

Slab and Crawl | On request - Basement, Pier & Beam.
House foundation design showing foundation layout with structural elements.

Plumbing Plan

Shows the layout of plumbing fixtures with specifications.

Floor Plan

Indicates house layout with dimensioned walls, doors, windows, etc.

Roof Construction Plan

Shows roof layout and structural specifications.

Roof Plan

Dimensioned roof layout indicating slopes, roof areas and decorative elements.

Sections

Cut through the building showing detailed floor, wall, and roof construction elements with specifications

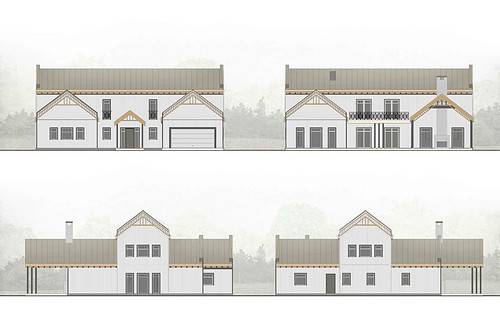

Elevations

Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

Construction Details

Detailed house cut-away with outline specifications.

Electrical Plan

Home plan layout indicating locations of electrical elements.

HVAC Plan

Indicates location and specifications for heating, ventilation and air conditioning.

Furniture Plan

House plan layout indicating room sizes and suggested furniture layout.

Door and Window Schedule

List or all doors and windows with indicated specifications for manufacturer.

General Specifications

Plumbing, electrical and mechanical specifications

More Info

The construction drawing set must be approved by a local structural engineer, as of the different structural requirements in each county. Each location has different soil condition as well as snow, wind, etc. load requirements. Most of the county's building departments require to get a local structural engineer’s approval on house structure to obtain a building permit. After the engineer’s review, if there is a need to update construction drawing set, we would update the drawings with engineer's specifications for Free and will issue an updated drawing set.

House plan design

Customize This House

If you like this plan, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

Fill This Form Describing Your Customizations

    House Plans

    Free Study Set Brochure

    Study Brochure includes floor plans, 3D images, elevations, Floor-Wall-Roof construction details, specifications, sustainable construction techniques, etc.
