Truoba 323

  1676 sq/ft     3 Bed    2 Bath

House plan design
Customize This House Plan

House Construction Drawings

$

Truoba 323

  1676 sq/ft     3 Bed    2 Bath

House plan design
Customize This House Plan

House Construction Drawings

$



Rate this plan

3.4/5 - (8 votes)

House Plans with Three Bedroom

Floor Plan

1676 sq/ft

House Area

334 sq/ft

Carport Area

54′-8″ X 45′

Dimensions
Customize This Plan

Check how floor plan sits on your plot for FREE

  • Open floor plan
  • The living area linked to the porch
  • Fireplace
  • Master bedroom linked to the porch
  • Walk-in closet
  • Pantry
  • Carport
  • Covered front and rear porch
  • Covered Master porch

Area

House area: 1676 sq. ft.

Carport area: 334 sq. ft.



Dimension

Width: 54′-8″

Depth: 45′

Height: 21′-5 1/2″



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Stone and Wood siding

Possible different wall finishes Metal, vinyl, wood, brick veneer, stone, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Roof pitch: 3/12 (14o) and 2/12 (9.46o)

Framing: Joists

Insulation: 12″ (applicable for additional insulation)

Snow load: 30 PSF



House Interior

Ceiling height: 10′

Living area ceiling height: from 15′-7″ to 19′-7″

Balanced Living

Great for a Smaller Lot

This house is a charming and cozy mid-century modern home with a compact yet efficient layout. It features 2 bedrooms and a separate master on opposite wings, and a central living room located in the center of the home. It is designed with the perfect blend of style, comfort, and functionality, with a layout that is sure to suit the needs of any family.

Room for Comfortable Life

The center of the house accommodates a main living area and a kitchen room with dining by the front, while the master bedroom is located on one wing and is completely separate from the other bedrooms for added privacy. The master bedroom is generously sized and includes a large walk-in closet and en-suite bathroom. The other wing of the house contains the remaining two bedrooms, with a shared bathroom located between them. This contemporary house also has a one-car carport which can be transferred into the garage.

Cost To Build Report

House plan design

Customize This House

If you like this house, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

View Customized House Plans Examples Customization Pricing Guide

Describe Your Customizations

    Sign me up to Newsletter

    Blueprints That You Get

    Plot Plan (+$100)

    Construction Notes

    Foundation Plan

    Slab or Crawl | On request - Basement, Pier & Beam.
    House foundation design showing foundation layout with structural elements.

    Plumbing Plan

    Shows the layout of plumbing fixtures with specifications.

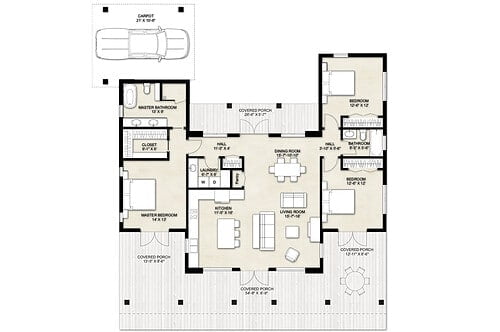

    Floor Plan

    Indicates house layout with dimensioned walls, doors, windows, etc.

    Roof Construction Plan

    Shows roof layout and structural specifications.

    Roof Plan

    Dimensioned roof layout indicating slopes, roof areas and decorative elements.

    Sections

    Cut through the building showing detailed floor, wall, and roof construction elements with specifications

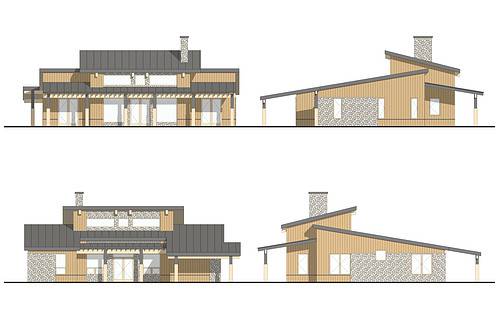

    Elevations
