Truoba Mini 117

500 sq/ft     1 Bed     1 Bath

House plan design
Customize This House Plan

House Construction Drawings

Clear
$

Truoba Mini 117

500 sq/ft     1 Bed     1 Bath

House plan design
Customize This House Plan

House Construction Drawings

Clear
$

Rate this plan

1 bedroom house plan

Floor Plan

500 sq/ft

House Area

29′-2″ X 40′-9″

Dimensions
Customize This Plan

Check how floor plan sits on your lot for FREE

  • Open floor plan
  • Living area linked to the porch
  • Main floor master bedroom
  • Master bedroom access to covered porch
  • Storage space
  • Empty nester
  • Guest house
  • Covered front porch
  • Covered rear porch

Area

House area: 500 sq. ft.



Dimension

Width: 40′-9″

Depth: 29′-2″

Height: 12′-10″



Exterior Wall

Framing: 2″x6″ stud wall

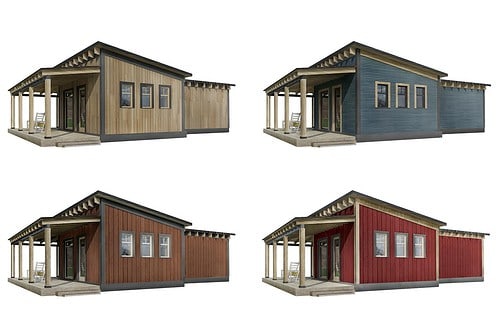

Wall finish: Vinyl siding

Possible different wall finishes: Wood siding, brick veneer, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl. Additionally, choose basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Primary pitch: 2/12 (10o)

Secondary pitch: 1.7/12 (8o)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)

Snow load: calculated for 10 PSF, 25 PSF and 35 PSF



House Interior

Ceiling height: 8′-6′-10′ – 6″

Perfectly compact

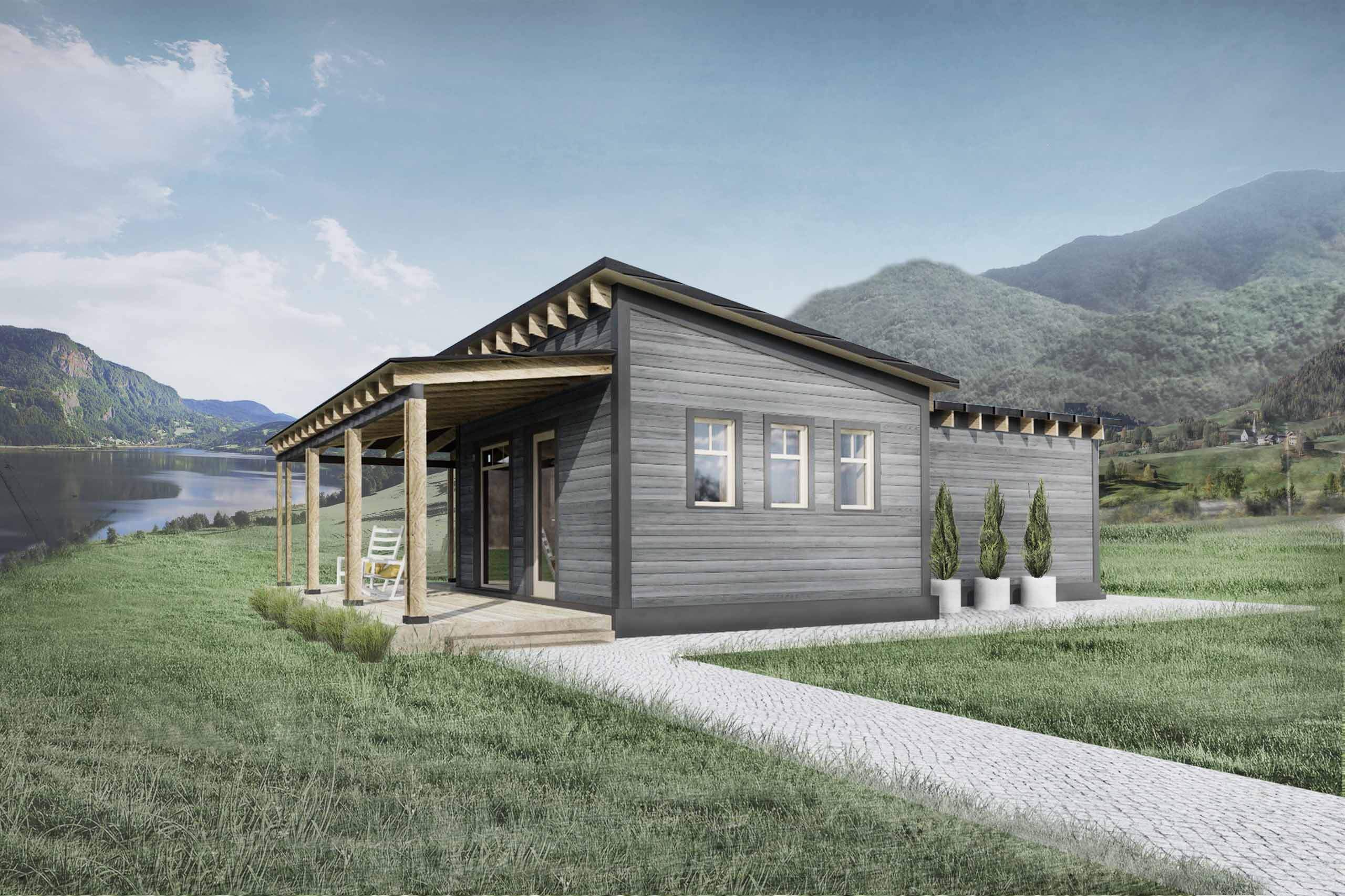

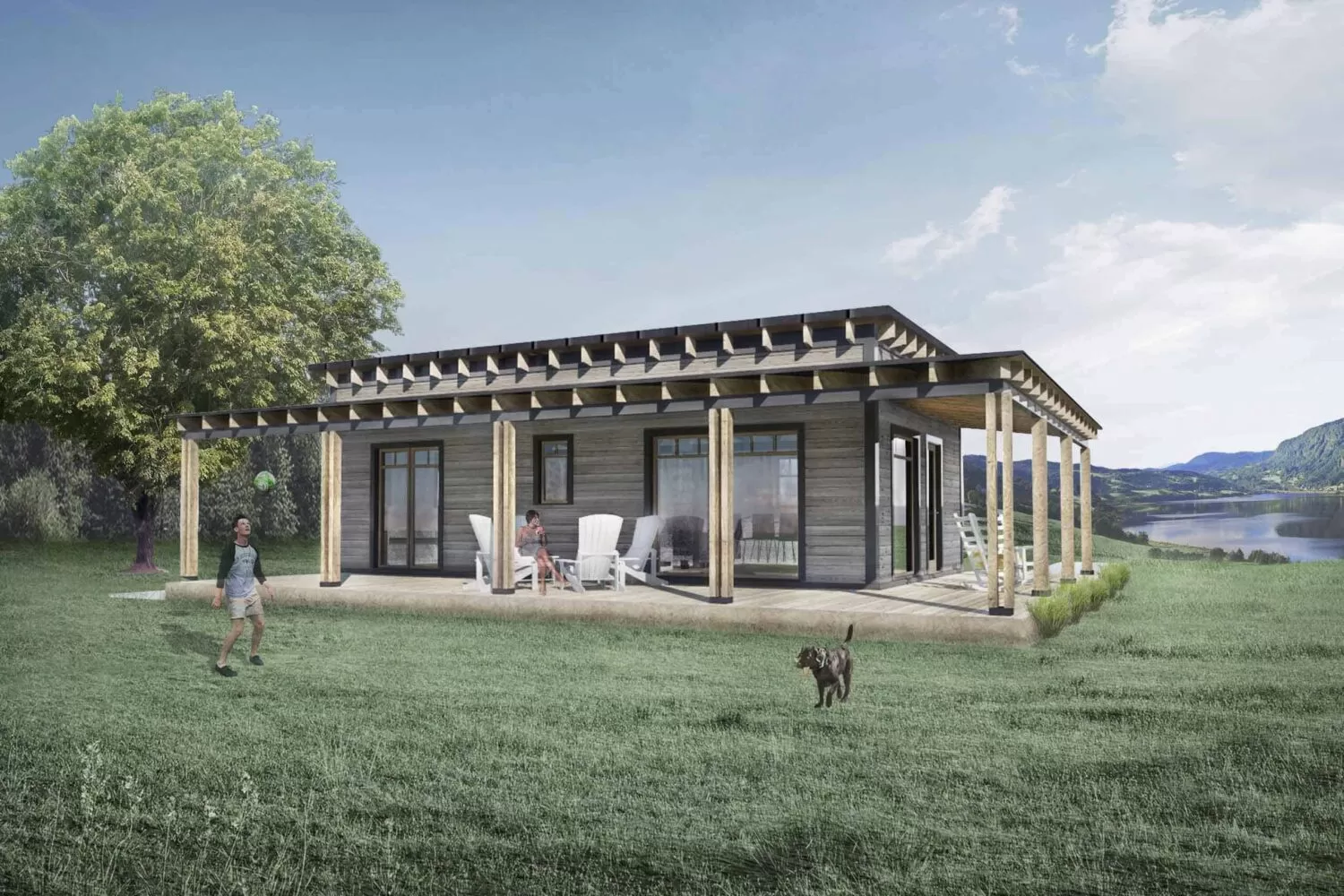

This is one of the tiny house plans that work great as a temporary vacation home or an additional guest house. This modern house is the perfect blend between compact and comfortable. The main living areas are connected to the covered porch, extending your living space out into nature. The main bedroom is situated parallel to the living area to give you privacy, peace, and access to the best views of the open lot.

What You Get

The List of House Construction Drawings

Site Plan (+$100)
Construction Notes
Foundation Plan

Slab and Crawl | On request - Basement, Pier & Beam.
House foundation design showing foundation layout with structural elements.

Plumbing Plan

Shows the layout of plumbing fixtures with specifications.

Floor Plan

Indicates house layout with dimensioned walls, doors, windows, etc.

Roof Construction Plan

Shows roof layout and structural specifications.

Roof Plan

Dimensioned roof layout indicating slopes, roof areas and decorative elements.

Sections

Cut through the building showing detailed floor, wall, and roof construction elements with specifications

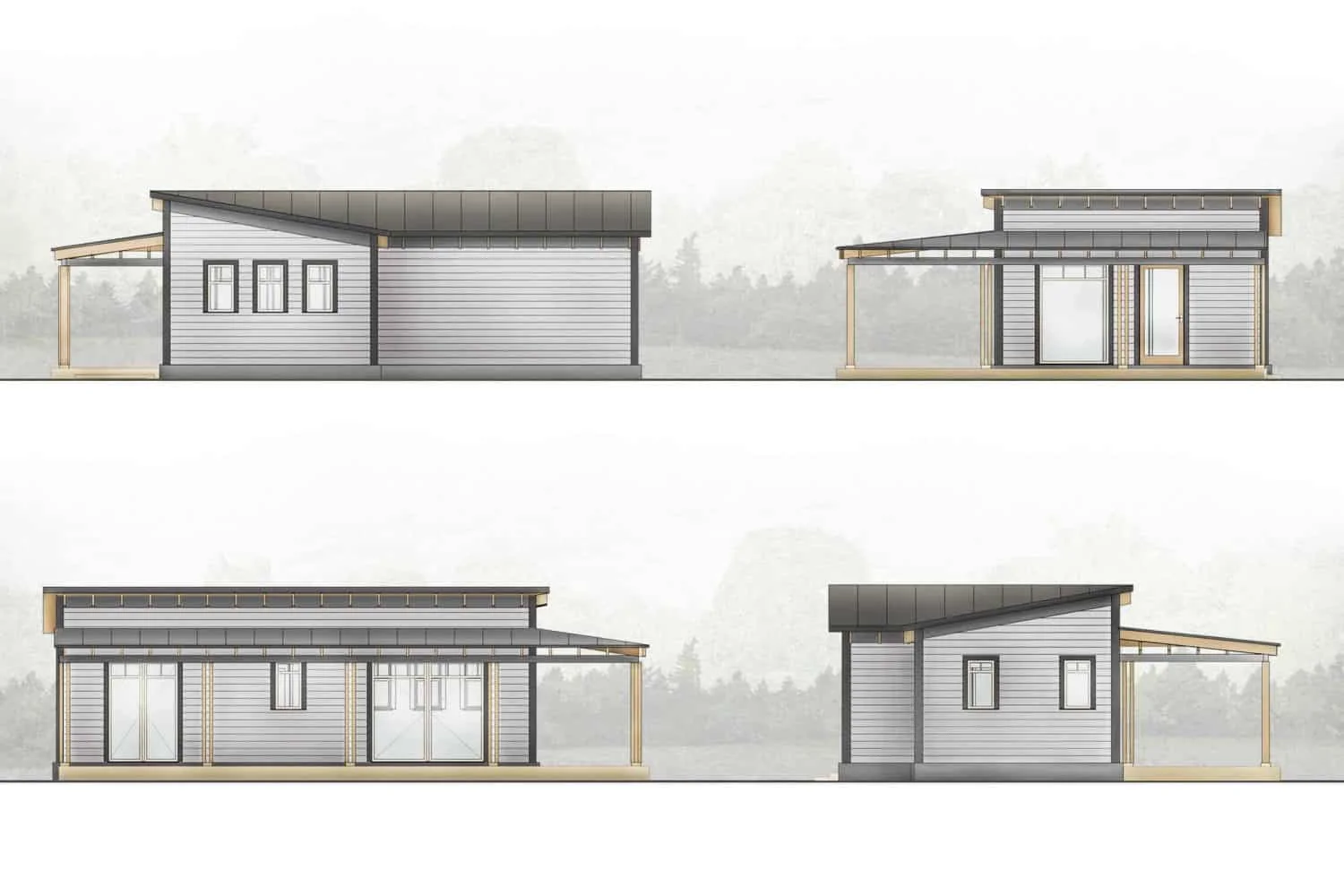

Elevations

Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

Construction Details

Detailed house cut-away with outline specifications.

Electrical Plan

Home plan layout indicating locations of electrical elements.

HVAC Plan

Indicates location and specifications for heating, ventilation and air conditioning.

Furniture Plan

House plan layout indicating room sizes and suggested furniture layout.

Door and Window Schedule

List or all doors and windows with indicated specifications for manufacturer.

General Specifications

Plumbing, electrical and mechanical specifications

More Info

The construction drawing set must be approved by a local structural engineer, as of the different structural requirements in each county. Each location has different soil condition as well as snow, wind, etc. load requirements. Most of the county's building departments require to get a local structural engineer’s approval on house structure to obtain a building permit. After the engineer’s review, if there is a need to update construction drawing set, we would update the drawings with engineer's specifications for Free and will issue an updated drawing set.

House plan design

Customize This House

If you like this plan, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

Fill This Form Describing Your Customizations

    House Plans

    Free Study Set Brochure

    Study Brochure includes floor plans, 3D images, elevations, Floor-Wall-Roof construction details, specifications, sustainable construction techniques, etc.
