Truoba Mini 118

1000 sq/ft     2 Bed     1 Bath

House plan design
Customize This House Plan

House Construction Drawings

$

How Much Will It Cost To Build?

Get Cost To Build Report

How Much Will It Cost To Build?

Get Cost To Build Report

Truoba Mini 118

1000 sq/ft     2 Bed     1 Bath

House plan design
Customize This House Plan

House Construction Drawings

$



Rate this plan

3.8/5 - (178 votes)

Accessory dwelling unit floor plan

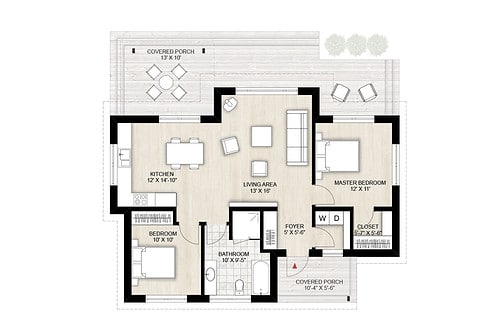

Floor Plan

1000 sq/ft

House Area

36′-7″ X 41′-3″

Dimensions
Customize This Plan

Check how floor plan sits on your plot for FREE

  • Open floor plan
  • Living area linked to the porch
  • Fireplace
  • Home library
  • Main floor master bedroom
  • Master bedroom acess to sundeck
  • Guest bedroom
  • Storage space
  • Guest house
  • Accessory dwelling unit
  • Covered front porch
  • Covered rear porch
  • Sundeck

Area

House area: 1000 sq. ft.



Dimension

Width: 41′-3″

Depth: 36′-7″

Height: 13′-2″



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Vinyl siding

Possible different wall finishes: Wood siding, brick veneer, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)



Foundation

Type: Slab and crawl. Additionally, choose basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Primary pitch: 1/12 (5o)

Secondary pitch: 2/12 (10o)

Framing: Rafters

Insulation: 12″ (applicable for additional insulation)

Snow load: calculated for 10 PSF, 25 PSF and 35 PSF



House Interior

Ceiling height: 9′

Main living area ceiling height: 10′-4″ – 11′-8″

Small and Smart

Great for a Smaller Lot

This is one of the small house plans that was designed to serve as a vacation home or a guest house, making the most out of a small lot. The modern house character is expressed through a seamless connection between interior and exterior spaces. This design has great flexibility options as room areas could be extended to have more space if necessary and exterior cladding can be chosen according to your own taste. The showcased exterior options are natural wood, vinyl, metal and shingle siding.

Sense of Space

An airy kitchen and the great room were designed as one continuous space in an open floor plan. The main living area has a higher ceiling, giving the room a feeling of added spaciousness. The windows are positioned to capture the most beautiful views and bring continuing sunlight into the house. Both bedrooms are located separately to allow more privacy and comfort. The master suite also opens to the porch, where you can enjoy your morning coffee. The second bedroom can be used as a den, a home office or a hobby room, depending on your needs. A separate storage room located by the foyer, helps you live clutter-free in a smaller home.

House plan design

Customize This House

If you like this house, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

View Customized House Plans Examples Customization Pricing Guide

Describe Your Customizations

    Sign me up to Newsletter

    Blueprints That You Get

    Plot Plan (+$100)

    Construction Notes

    Foundation Plan

    Slab or Crawl | On request - Basement, Pier & Beam.
    House foundation design showing foundation layout with structural elements.

    Plumbing Plan

    Shows the layout of plumbing fixtures with specifications.

    Floor Plan

    Indicates house layout with dimensioned walls, doors, windows, etc.

    Roof Construction Plan

    Shows roof layout and structural specifications.

    Roof Plan

    Dimensioned roof layout indicating slopes, roof areas and decorative elements.

    Sections

    Cut through the building showing detailed floor, wall, and roof construction elements with specifications

    Elevations

    Shows all sides of the house facade indicating building elements, specifications and all decorative elements.

    Construction Details

    Detailed house cut-away thought floor, exterior wall and roof with outlined specifications. Door and window details too.

    Electrical Plan

    Home plan layout indicating locations of electrical elements.

    HVAC Plan

    Indicates location and specifications for heating, ventilation and air conditioning.

    Furniture Plan

    House plan layout indicating room sizes and suggested furniture layout.

    Door and Window Schedule

    List or all doors and windows with indicated specifications for manufacturer.

    General Specifications

    Plumbing, electrical and mechanical specifications

    Plot Plan

    Some counties require to have a plot plan in order to obtain a building permit. The plot plan shows where the house will be located on your property, so the builder would know where exactly to pour foundations. In order for us to produce a plot plan, you would need to send us your plot topography drawing or write us your plot boundary dimensions with stated setbacks. The plot plan would also show plot size, existing and new structures, set back lines, sewage disposal systems, utilities, power lines, driveway, paving, existing trees, etc.

    Electrical Plan

    Each customer knows better where they would like to locate lighting, switches or outlets. After you purchase the house construction drawings, if you would like to make electrical layout changes, send us your comments and we will update electrical plan for Free.

    Structural Requirements

    The construction drawing set must be reviewed by a local structural engineer, as of the different structural requirements in each county. Each location has different soil conditions as well as different load requirements for snow, wind, seismic, etc. For this reason structural engineer would need to specify supporting structure including beams, girders, headers, rafters/trusses, columns, etc. Also, most of the building departments require to get a local structural engineer’s stamps to obtain a building permit. After the engineer’s review, if there is a need to update the construction drawing set according to engineer's structural specifications, we will update the drawings for Free and will issue an updated drawing set.

    House Plans

    Free Study Set Brochure

    Study Brochure includes floor plans, 3D images, elevations, Floor-Wall-Roof construction details, specifications, sustainable construction techniques, etc.

      Sign me up to Newsletter

      See How Your Preferred House Plan Sits On Your Lot For Free

      Send us your plot plan drawing, and we'll show you how your desired house will fit on your lot. We will advise on the best location for the house, how to gain more privacy, and how to take advantage of the best lot views.

      Check how floor plan sits on your plot
